Special Topics
Using MLflow
Log your neuralforecast experiments to MLflow
Installing dependencies
To install Neuralforecast refer to https://nixtlaverse.nixtla.io/neuralforecast/examples/installation.html.
To install mlflow: pip install mlflow
Imports
import logging
import os
import warnings
import matplotlib.pyplot as plt
import mlflow
import mlflow.data
import numpy as np
import pandas as pd
from mlflow.client import MlflowClient
from mlflow.data.pandas_dataset import PandasDataset
from utilsforecast.plotting import plot_series
from neuralforecast.core import NeuralForecast
from neuralforecast.models import NBEATSx
from neuralforecast.utils import AirPassengersDF
from neuralforecast.losses.pytorch import MAE
os.environ['NIXTLA_ID_AS_COL'] = '1'
logging.getLogger("mlflow").setLevel(logging.ERROR)
logging.getLogger("pytorch_lightning").setLevel(logging.ERROR)
warnings.filterwarnings("ignore")
Splitting the data
# Split data and declare panel dataset
Y_df = AirPassengersDF
Y_train_df = Y_df[Y_df.ds<='1959-12-31'] # 132 train
Y_test_df = Y_df[Y_df.ds>'1959-12-31'] # 12 test
Y_df.tail()
unique_id | ds | y | |
---|---|---|---|
139 | 1.0 | 1960-08-31 | 606.0 |
140 | 1.0 | 1960-09-30 | 508.0 |
141 | 1.0 | 1960-10-31 | 461.0 |
142 | 1.0 | 1960-11-30 | 390.0 |
143 | 1.0 | 1960-12-31 | 432.0 |
MLflow UI
Run the following command from the terminal to start the UI:
mlflow ui
. You can then go to the printed URL to visualize the
experiments.
Model training
mlflow.pytorch.autolog(checkpoint=False)
with mlflow.start_run() as run:
# Log the dataset to the MLflow Run. Specify the "training" context to indicate that the
# dataset is used for model training
dataset: PandasDataset = mlflow.data.from_pandas(Y_df, source="AirPassengersDF")
mlflow.log_input(dataset, context="training")
# Define and log parameters
horizon = len(Y_test_df)
model_params = dict(
input_size=1 * horizon,
h=horizon,
max_steps=300,
loss=MAE(),
valid_loss=MAE(),
activation='ReLU',
scaler_type='robust',
random_seed=42,
enable_progress_bar=False,
)
mlflow.log_params(model_params)
# Fit NBEATSx model
models = [NBEATSx(**model_params)]
nf = NeuralForecast(models=models, freq='M')
train = nf.fit(df=Y_train_df, val_size=horizon)
# Save conda environment used to run the model
mlflow.pytorch.get_default_conda_env()
# Save pip requirements
mlflow.pytorch.get_default_pip_requirements()
mlflow.pytorch.autolog(disable=True)
# Save the neural forecast model
nf.save(path='./checkpoints/test_run_1/',
model_index=None,
overwrite=True,
save_dataset=True)
Seed set to 42
Forecasting the future
Y_hat_df = nf.predict(futr_df=Y_test_df)

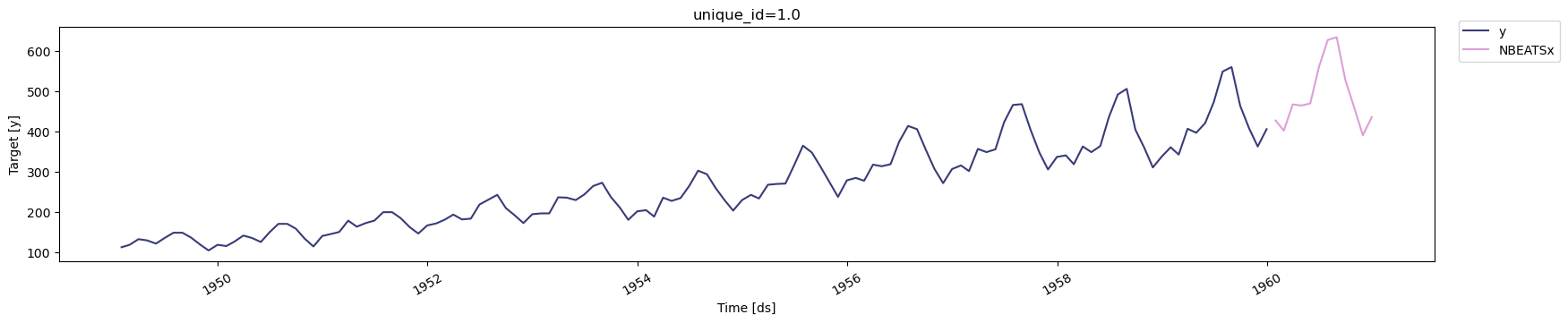

plot_series(Y_train_df, Y_hat_df, palette='tab20b')
