Long-Horizon Forecasting with Transformer models
Tutorial on how to train and forecast Transformer models.
Transformer models, originally proposed for applications in natural language processing, have seen increasing adoption in the field of time series forecasting. The transformative power of these models lies in their novel architecture that relies heavily on the self-attention mechanism, which helps the model to focus on different parts of the input sequence to make predictions, while capturing long-range dependencies within the data. In the context of time series forecasting, Transformer models leverage this self-attention mechanism to identify relevant information across different periods in the time series, making them exceptionally effective in predicting future values for complex and noisy sequences.
Long horizon forecasting consists of predicting a large number of timestamps. It is a challenging task because of the volatility of the predictions and the computational complexity. To solve this problem, recent studies proposed a variety of Transformer-based models.
The Neuralforecast library includes implementations of the following
popular recent models:
Informer
(Zhou, H. et al. 2021),
Autoformer
(Wu et al. 2021),
FEDformer
(Zhou, T. et al. 2022), and
PatchTST
(Nie et al. 2023).
Our implementation of all these models are univariate, meaning that only autoregressive values of each feature are used for forecasting. We observed that these unvivariate models are more accurate and faster than their multivariate couterpart.
In this notebook we will show how to: * Load the ETTm2 benchmark dataset, used in the academic literature. * Train models * Forecast the test set
The results achieved in this notebook outperform the original
self-reported results in the respective original paper, with a fraction
of the computational cost. Additionally, all models are trained with the
default recommended parameters, results can be further improved using
our auto
models with automatic hyperparameter selection.
You can run these experiments using GPU with Google Colab.
1. Installing libraries
!pip install neuralforecast datasetsforecast
2. Load ETTm2 Data
The LongHorizon
class will automatically download the complete ETTm2
dataset and process it.
It return three Dataframes: Y_df
contains the values for the target
variables, X_df
contains exogenous calendar features and S_df
contains static features for each time-series (none for ETTm2). For this
example we will only use Y_df
.
If you want to use your own data just replace Y_df
. Be sure to use a
long format and have a simmilar structure than our data set.
import pandas as pd
from datasetsforecast.long_horizon import LongHorizon
# Change this to your own data to try the model
Y_df, _, _ = LongHorizon.load(directory='./', group='ETTm2')
Y_df['ds'] = pd.to_datetime(Y_df['ds'])
n_time = len(Y_df.ds.unique())
val_size = int(.2 * n_time)
test_size = int(.2 * n_time)
Y_df.groupby('unique_id').head(2)
unique_id | ds | y | |
---|---|---|---|
0 | HUFL | 2016-07-01 00:00:00 | -0.041413 |
1 | HUFL | 2016-07-01 00:15:00 | -0.185467 |
57600 | HULL | 2016-07-01 00:00:00 | 0.040104 |
57601 | HULL | 2016-07-01 00:15:00 | -0.214450 |
115200 | LUFL | 2016-07-01 00:00:00 | 0.695804 |
115201 | LUFL | 2016-07-01 00:15:00 | 0.434685 |
172800 | LULL | 2016-07-01 00:00:00 | 0.434430 |
172801 | LULL | 2016-07-01 00:15:00 | 0.428168 |
230400 | MUFL | 2016-07-01 00:00:00 | -0.599211 |
230401 | MUFL | 2016-07-01 00:15:00 | -0.658068 |
288000 | MULL | 2016-07-01 00:00:00 | -0.393536 |
288001 | MULL | 2016-07-01 00:15:00 | -0.659338 |
345600 | OT | 2016-07-01 00:00:00 | 1.018032 |
345601 | OT | 2016-07-01 00:15:00 | 0.980124 |
3. Train models
We will train models using the cross_validation
method, which allows
users to automatically simulate multiple historic forecasts (in the test
set).
The cross_validation
method will use the validation set for
hyperparameter selection and early stopping, and will then produce the
forecasts for the test set.
First, instantiate each model in the models
list, specifying the
horizon
, input_size
, and training iterations.
(NOTE: The
FEDformer
model was excluded due to extremely long training times.)
from neuralforecast.core import NeuralForecast
from neuralforecast.models import Informer, Autoformer, FEDformer, PatchTST
INFO:torch.distributed.nn.jit.instantiator:Created a temporary directory at /tmp/tmpopb2vyyt
INFO:torch.distributed.nn.jit.instantiator:Writing /tmp/tmpopb2vyyt/_remote_module_non_scriptable.py
horizon = 96 # 24hrs = 4 * 15 min.
models = [Informer(h=horizon, # Forecasting horizon
input_size=horizon, # Input size
max_steps=1000, # Number of training iterations
val_check_steps=100, # Compute validation loss every 100 steps
early_stop_patience_steps=3), # Stop training if validation loss does not improve
Autoformer(h=horizon,
input_size=horizon,
max_steps=1000,
val_check_steps=100,
early_stop_patience_steps=3),
PatchTST(h=horizon,
input_size=horizon,
max_steps=1000,
val_check_steps=100,
early_stop_patience_steps=3),
]
INFO:lightning_fabric.utilities.seed:Global seed set to 1
INFO:lightning_fabric.utilities.seed:Global seed set to 1
INFO:lightning_fabric.utilities.seed:Global seed set to 1
Tip
Check our
auto
models for automatic hyperparameter optimization.
Instantiate a
NeuralForecast
object with the following required parameters:
-
models
: a list of models. -
freq
: a string indicating the frequency of the data. (See panda’s available frequencies.)
Second, use the cross_validation
method, specifying the dataset
(Y_df
), validation size and test size.
nf = NeuralForecast(
models=models,
freq='15min')
Y_hat_df = nf.cross_validation(df=Y_df,
val_size=val_size,
test_size=test_size,
n_windows=None)
The cross_validation
method will return the forecasts for each model
on the test set.
Y_hat_df.head()
unique_id | ds | cutoff | Informer | Autoformer | PatchTST | y | |
---|---|---|---|---|---|---|---|
0 | HUFL | 2017-10-24 00:00:00 | 2017-10-23 23:45:00 | -1.055062 | -0.861487 | -0.860189 | -0.977673 |
1 | HUFL | 2017-10-24 00:15:00 | 2017-10-23 23:45:00 | -1.021247 | -0.873399 | -0.865730 | -0.865620 |
2 | HUFL | 2017-10-24 00:30:00 | 2017-10-23 23:45:00 | -1.057297 | -0.900345 | -0.944296 | -0.961624 |
3 | HUFL | 2017-10-24 00:45:00 | 2017-10-23 23:45:00 | -0.886652 | -0.867466 | -0.974849 | -1.049700 |
4 | HUFL | 2017-10-24 01:00:00 | 2017-10-23 23:45:00 | -1.000431 | -0.887454 | -1.008530 | -0.953600 |
4. Evaluate Results

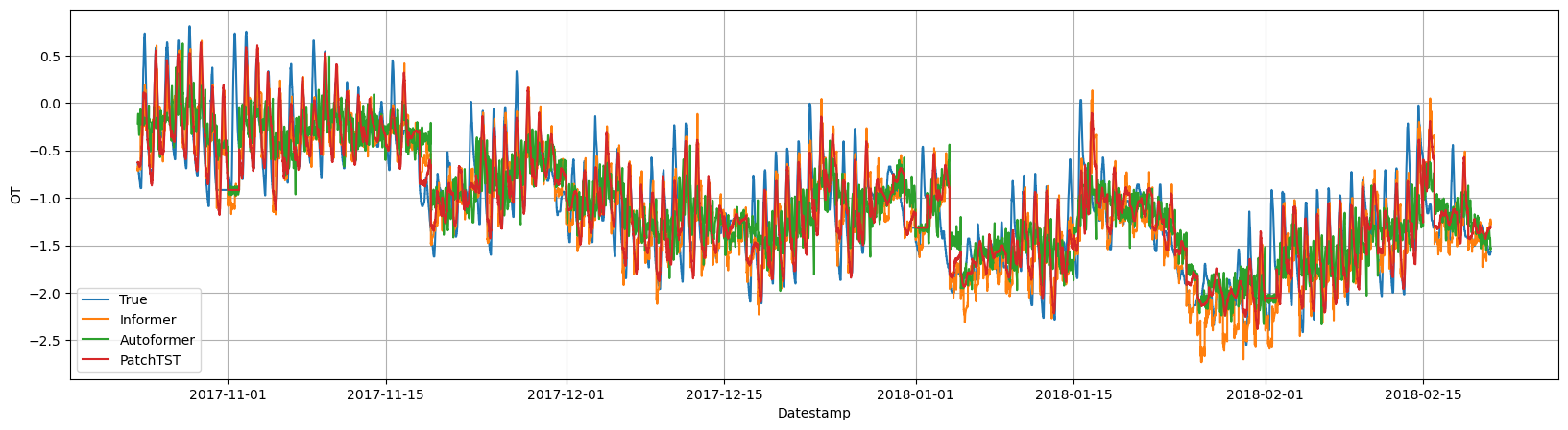

Next, we plot the forecasts on the test set for the OT
variable for
all models.
import matplotlib.pyplot as plt
Y_plot = Y_hat_df[Y_hat_df['unique_id']=='OT'] # OT dataset
cutoffs = Y_hat_df['cutoff'].unique()[::horizon]
Y_plot = Y_plot[Y_hat_df['cutoff'].isin(cutoffs)]
plt.figure(figsize=(20,5))
plt.plot(Y_plot['ds'], Y_plot['y'], label='True')
plt.plot(Y_plot['ds'], Y_plot['Informer'], label='Informer')
plt.plot(Y_plot['ds'], Y_plot['Autoformer'], label='Autoformer')
plt.plot(Y_plot['ds'], Y_plot['PatchTST'], label='PatchTST')
plt.xlabel('Datestamp')
plt.ylabel('OT')
plt.grid()
plt.legend()
Finally, we compute the test errors using the Mean Absolute Error (MAE):
from neuralforecast.losses.numpy import mae
mae_informer = mae(Y_hat_df['y'], Y_hat_df['Informer'])
mae_autoformer = mae(Y_hat_df['y'], Y_hat_df['Autoformer'])
mae_patchtst = mae(Y_hat_df['y'], Y_hat_df['PatchTST'])
print(f'Informer: {mae_informer:.3f}')
print(f'Autoformer: {mae_autoformer:.3f}')
print(f'PatchTST: {mae_patchtst:.3f}')
Informer: 0.339
Autoformer: 0.316
PatchTST: 0.251
For reference, we can check the performance when compared to self-reported performance in their respective papers.
Horizon | PatchTST | AutoFormer | Informer | ARIMA |
---|---|---|---|---|
96 | 0.256 | 0.339 | 0.453 | 0.301 |
192 | 0.296 | 0.340 | 0.563 | 0.345 |
336 | 0.329 | 0.372 | 0.887 | 0.386 |
720 | 0.385 | 0.419 | 1.388 | 0.445 |
Next steps
We proposed an alternative model for long-horizon forecasting, the
NHITS
,
based on feed-forward networks in (Challu et al. 2023). It achieves on
par performance with
PatchTST
,
with a fraction of the computational cost. The
NHITS
tutorial is available
here.
