# Probabilistic forecasting

In this example, we’ll implement prediction intervals

PrerequesitesThis tutorial assumes basic familiarity with MLForecast. For a minimal example visit the Quick Start

## Introduction

When we generate a forecast, we usually produce a single value known as
the point forecast. This value, however, doesn’t tell us anything about
the uncertainty associated with the forecast. To have a measure of this
uncertainty, we need **prediction intervals**.

A prediction interval is a range of values that the forecast can take with a given probability. Hence, a 95% prediction interval should contain a range of values that include the actual future value with probability 95%. Probabilistic forecasting aims to generate the full forecast distribution. Point forecasting, on the other hand, usually returns the mean or the median or said distribution. However, in real-world scenarios, it is better to forecast not only the most probable future outcome, but many alternative outcomes as well.

With MLForecast you can train
`sklearn`

models to generate point forecasts. It also takes the
advantages of `ConformalPrediction`

to generate the same point forecasts
and adds them prediction intervals. By the end of this tutorial, you’ll
have a good understanding of how to add probabilistic intervals to
`sklearn`

models for time series forecasting. Furthermore, you’ll also
learn how to generate plots with the historical data, the point
forecasts, and the prediction intervals.

ImportantAlthough the terms are often confused, prediction intervals are not the same as confidence intervals.

WarningIn practice, most prediction intervals are too narrow since models do not account for all sources of uncertainty. A discussion about this can be found here.

**Outline:**

- Install libraries
- Load and explore the data
- Train models
- Plot prediction intervals

TipYou can use Colab to run this Notebook interactively

## Install libraries

Install the necessary packages using
`pip install mlforecast utilsforecast`

## Load and explore the data

For this example, we’ll use the hourly dataset from the M4
Competition.
We first need to download the data from a URL and then load it as a
`pandas`

dataframe. Notice that we’ll load the train and the test data
separately. We’ll also rename the `y`

column of the test data as
`y_test`

.

```
import pandas as pd
from utilsforecast.plotting import plot_series
```

```
train = pd.read_csv('https://auto-arima-results.s3.amazonaws.com/M4-Hourly.csv')
test = pd.read_csv('https://auto-arima-results.s3.amazonaws.com/M4-Hourly-test.csv')
```

```
train.head()
```

unique_id | ds | y | |
---|---|---|---|

0 | H1 | 1 | 605.0 |

1 | H1 | 2 | 586.0 |

2 | H1 | 3 | 586.0 |

3 | H1 | 4 | 559.0 |

4 | H1 | 5 | 511.0 |

```
test.head()
```

unique_id | ds | y | |
---|---|---|---|

0 | H1 | 701 | 619.0 |

1 | H1 | 702 | 565.0 |

2 | H1 | 703 | 532.0 |

3 | H1 | 704 | 495.0 |

4 | H1 | 705 | 481.0 |

Since the goal of this notebook is to generate prediction intervals, we’ll only use the first 8 series of the dataset to reduce the total computational time.

```
n_series = 8
uids = train['unique_id'].unique()[:n_series] # select first n_series of the dataset
train = train.query('unique_id in @uids')
test = test.query('unique_id in @uids')
```

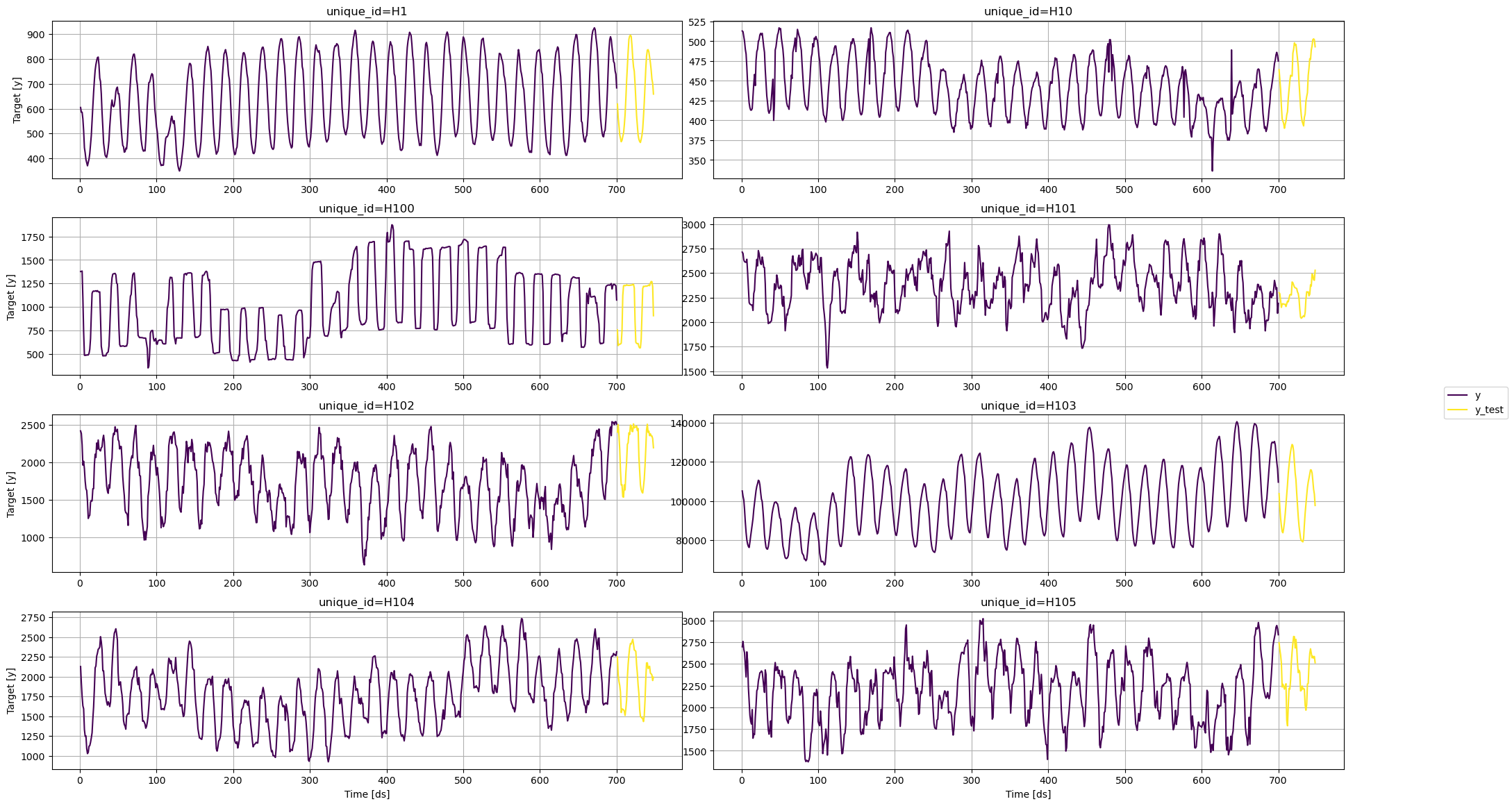

We can plot these series using the `plot_series`

function from the
utilsforecast
library. This function has multiple parameters, and the required ones to
generate the plots in this notebook are explained below.

`df`

: A`pandas`

dataframe with columns [`unique_id`

,`ds`

,`y`

].`forecasts_df`

: A`pandas`

dataframe with columns [`unique_id`

,`ds`

] and models.`plot_random`

: bool =`True`

. Plots the time series randomly.`models`

: List[str]. A list with the models we want to plot.`level`

: List[float]. A list with the prediction intervals we want to plot.`engine`

: str =`matplotlib`

. It can also be`plotly`

.`plotly`

generates interactive plots, while`matplotlib`

generates static plots.

```
fig = plot_series(train, test.rename(columns={'y': 'y_test'}), models=['y_test'], plot_random=False)
```

## Train models

MLForecast can train multiple models that follow the `sklearn`

syntax
(`fit`

and `predict`

) on different time series efficiently.

For this example, we’ll use the following `sklearn`

baseline models:

To use these models, we first need to import them from `sklearn`

and
then we need to instantiate them.

```
from mlforecast import MLForecast
from mlforecast.target_transforms import Differences
from mlforecast.utils import PredictionIntervals
from sklearn.linear_model import Lasso, LinearRegression, Ridge
from sklearn.neighbors import KNeighborsRegressor
from sklearn.neural_network import MLPRegressor
```

```
# Create a list of models and instantiation parameters
models = [
KNeighborsRegressor(),
Lasso(),
LinearRegression(),
MLPRegressor(),
Ridge(),
]
```

To instantiate a new MLForecast object, we need the following parameters:

`models`

: The list of models defined in the previous step.`target_transforms`

: Transformations to apply to the target before computing the features. These are restored at the forecasting step.`lags`

: Lags of the target to use as features.

```
mlf = MLForecast(
models=[Ridge(), Lasso(), LinearRegression(), KNeighborsRegressor(), MLPRegressor(random_state=0)],
freq=1,
target_transforms=[Differences([1])],
lags=[24 * (i+1) for i in range(7)],
)
```

Now we’re ready to generate the point forecasts and the prediction
intervals. To do this, we’ll use the `fit`

method, which takes the
following arguments:

`data`

: Series data in long format.`id_col`

: Column that identifies each series. In our case,`unique_id`

.`time_col`

: Column that identifies each timestep, its values can be timestamps or integers. In our case,`ds`

.`target_col`

: Column that contains the target. In our case,`y`

.`prediction_intervals`

: A`PredicitonIntervals`

class. The class takes two parameters:`n_windows`

and`h`

.`n_windows`

represents the number of cross-validation windows used to calibrate the intervals and`h`

is the forecast horizon. The strategy will adjust the intervals for each horizon step, resulting in different widths for each step.

```
mlf.fit(
train,
prediction_intervals=PredictionIntervals(n_windows=10, h=48),
);
```

After fitting the models, we will call the `predict`

method to generate
forecasts with prediction intervals. The method takes the following
arguments:

`horizon`

: An integer that represent the forecasting horizon. In this case, we’ll forecast the next 48 hours.`level`

: A list of floats with the confidence levels of the prediction intervals. For example,`level=[95]`

means that the range of values should include the actual future value with probability 95%.

```
levels = [50, 80, 95]
forecasts = mlf.predict(48, level=levels)
forecasts.head()
```

unique_id | ds | Ridge | Lasso | LinearRegression | KNeighborsRegressor | MLPRegressor | Ridge-lo-95 | Ridge-lo-80 | Ridge-lo-50 | … | KNeighborsRegressor-lo-50 | KNeighborsRegressor-hi-50 | KNeighborsRegressor-hi-80 | KNeighborsRegressor-hi-95 | MLPRegressor-lo-95 | MLPRegressor-lo-80 | MLPRegressor-lo-50 | MLPRegressor-hi-50 | MLPRegressor-hi-80 | MLPRegressor-hi-95 | |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

0 | H1 | 701 | 612.418170 | 612.418079 | 612.418170 | 615.2 | 612.651532 | 590.473256 | 594.326570 | 603.409944 | … | 609.45 | 620.95 | 627.20 | 631.310 | 584.736193 | 591.084898 | 597.462107 | 627.840957 | 634.218166 | 640.566870 |

1 | H1 | 702 | 552.309298 | 552.308073 | 552.309298 | 551.6 | 548.791801 | 498.721501 | 518.433843 | 532.710850 | … | 535.85 | 567.35 | 569.16 | 597.525 | 497.308756 | 500.417799 | 515.452396 | 582.131207 | 597.165804 | 600.274847 |

2 | H1 | 703 | 494.943384 | 494.943367 | 494.943384 | 509.6 | 490.226796 | 448.253304 | 463.266064 | 475.006125 | … | 492.70 | 526.50 | 530.92 | 544.180 | 424.587658 | 436.042788 | 448.682502 | 531.771091 | 544.410804 | 555.865935 |

3 | H1 | 704 | 462.815779 | 462.815363 | 462.815779 | 474.6 | 459.619069 | 409.975219 | 422.243593 | 436.128272 | … | 451.80 | 497.40 | 510.26 | 525.500 | 379.291083 | 392.580306 | 413.353178 | 505.884959 | 526.657832 | 539.947054 |

4 | H1 | 705 | 440.141034 | 440.140586 | 440.141034 | 451.6 | 438.091712 | 377.999588 | 392.523016 | 413.474795 | … | 427.40 | 475.80 | 488.96 | 503.945 | 348.618034 | 362.503767 | 386.303325 | 489.880099 | 513.679657 | 527.565389 |

```
test = test.merge(forecasts, how='left', on=['unique_id', 'ds'])
```

## Plot prediction intervals

To plot the point and the prediction intervals, we’ll use the
`plot_series`

function again. Notice that now we also need to specify
the model and the levels that we want to plot.

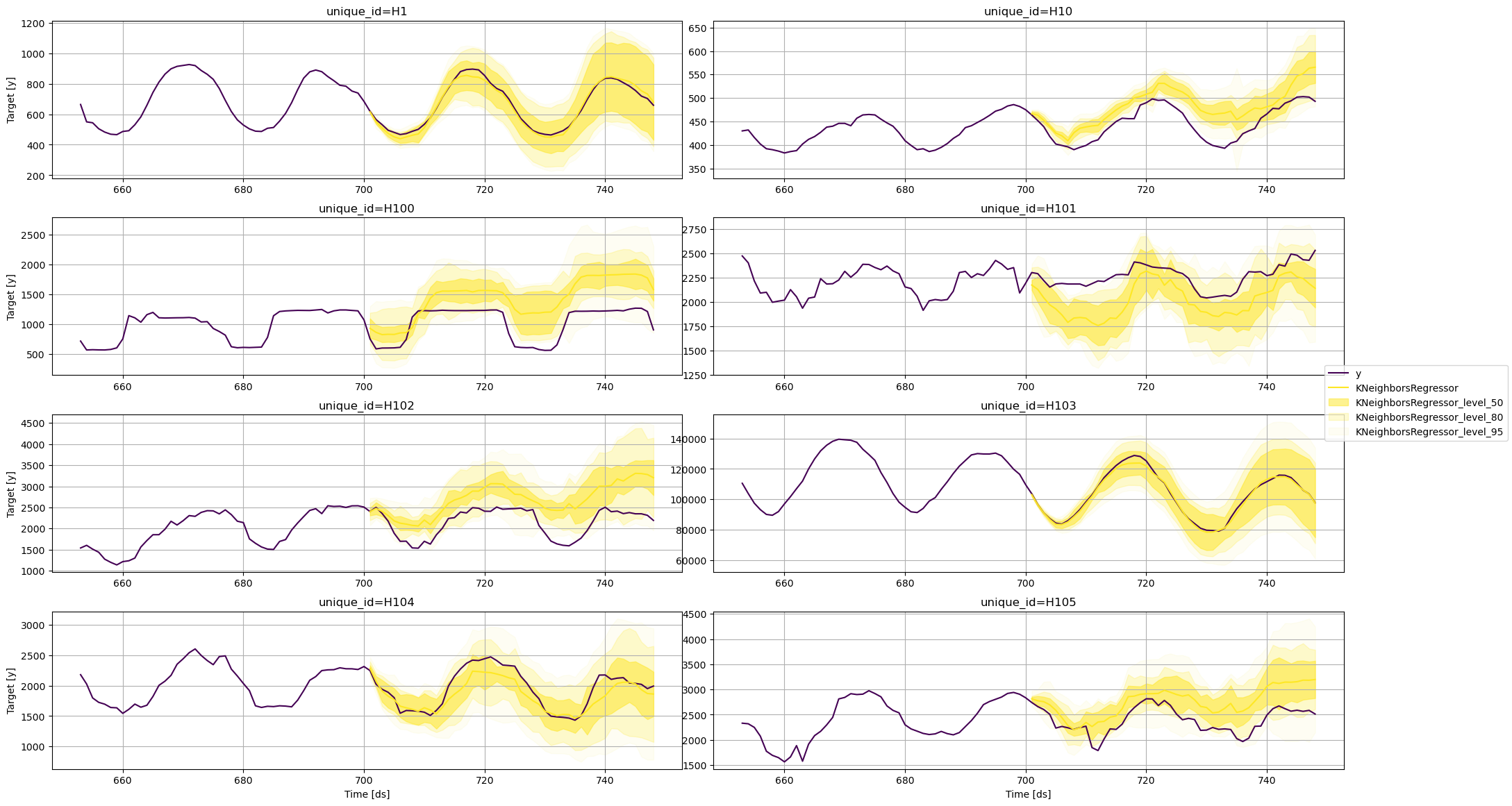

### KNeighborsRegressor

```
fig = plot_series(
train,
test,
plot_random=False,
models=['KNeighborsRegressor'],
level=levels,
max_insample_length=48
)
```

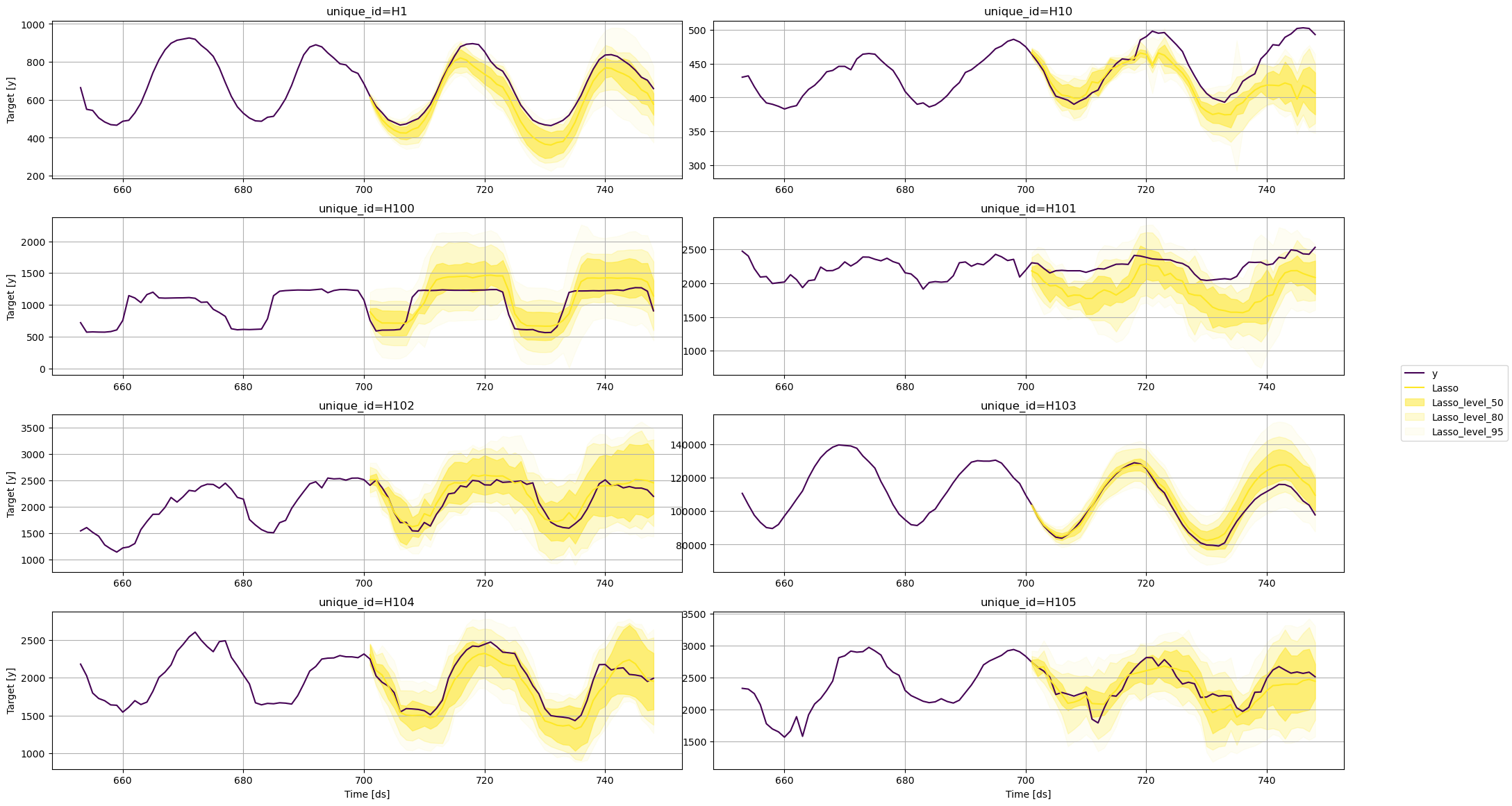

### Lasso

```
fig = plot_series(
train,
test,
plot_random=False,
models=['Lasso'],
level=levels,
max_insample_length=48
)
```

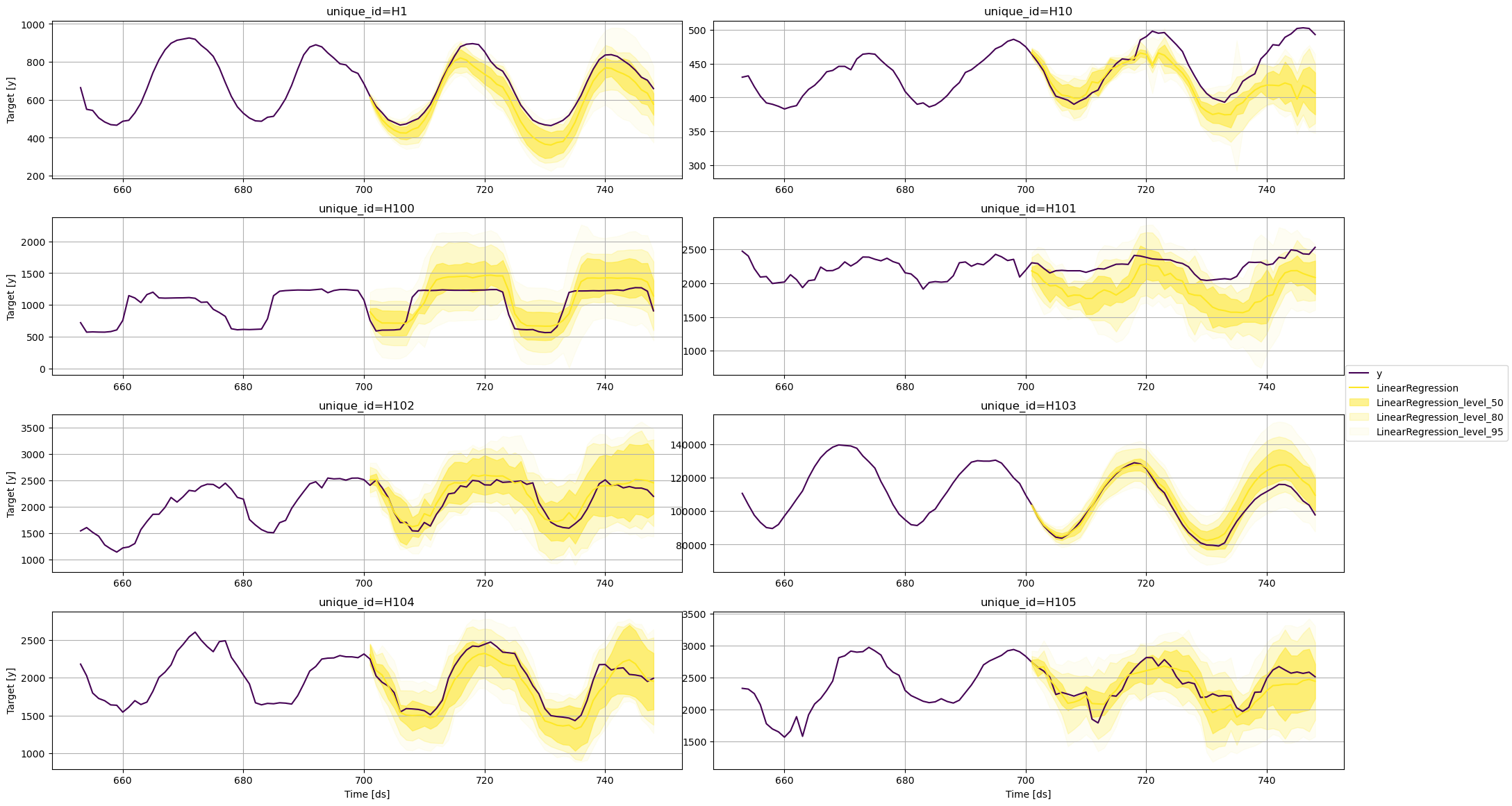

### LineaRegression

```
fig = plot_series(
train,
test,
plot_random=False,
models=['LinearRegression'],
level=levels,
max_insample_length=48
)
```

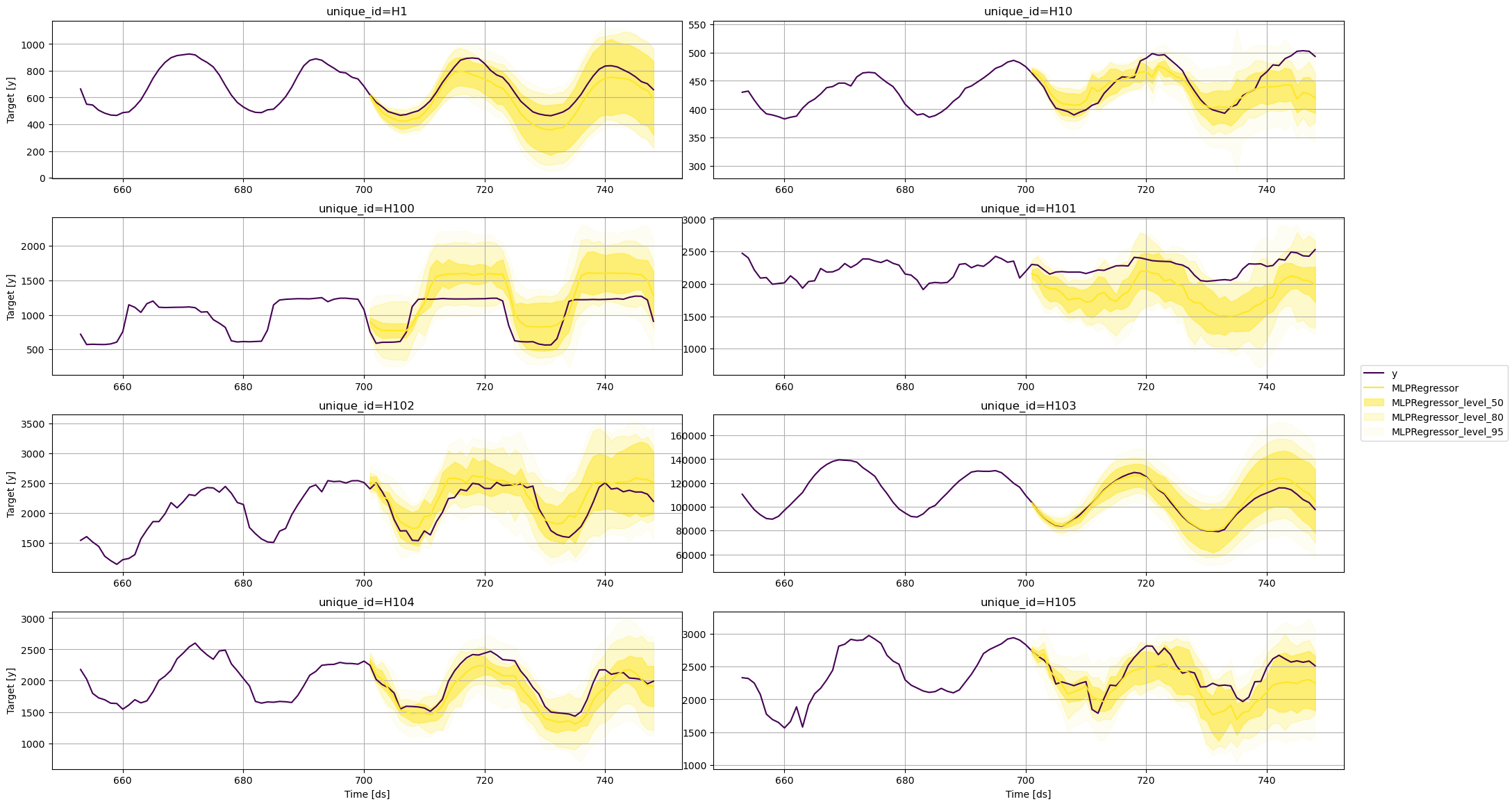

### MLPRegressor

```
fig = plot_series(
train,
test,
plot_random=False,
models=['MLPRegressor'],
level=levels,
max_insample_length=48
)
```

### Ridge

```
fig = plot_series(
train,
test,
plot_random=False,
models=['Ridge'],
level=levels,
max_insample_length=48
)
```

From these plots, we can conclude that the uncertainty around each forecast varies according to the model that is being used. For the same time series, one model can predict a wider range of possible future values than others.
