Since mlforecast uses a single global model it can be helpful to apply
some transformations to the target to ensure that all series have
similar distributions. They can also help remove trend for models that
can’t deal with it out of the box.
Data setup
For this example we’ll use a single serie from the M4 dataset.
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
from datasetsforecast.m4 import M4
from sklearn.base import BaseEstimator
from mlforecast import MLForecast
from mlforecast.target_transforms import Differences, LocalStandardScaler
data_path = 'data'
await M4.async_download(data_path, group='Hourly')
df, *_ = M4.load(data_path, 'Hourly')
df['ds'] = df['ds'].astype('int32')
serie = df[df['unique_id'].eq('H196')]
Transformations applied per serie
Differences
We’ll take a look at our serie to see possible differences that would
help our models.
def plot(series, fname):
n_series = len(series)
fig, ax = plt.subplots(ncols=n_series, figsize=(7 * n_series, 6), squeeze=False)
for (title, serie), axi in zip(series.items(), ax.flat):
serie.set_index('ds')['y'].plot(title=title, ax=axi)
fig.savefig(f'../../figs/{fname}', bbox_inches='tight')
plt.close()

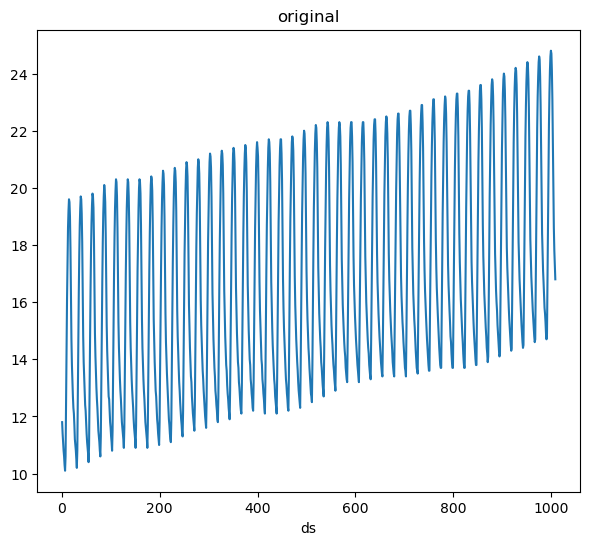

plot({'original': serie}, 'target_transforms__eda.png')
We can see that our data has a trend as well as a clear seasonality. We
can try removing the trend first.
fcst = MLForecast(
models=[],
freq=1,
target_transforms=[Differences([1])],
)
without_trend = fcst.preprocess(serie)

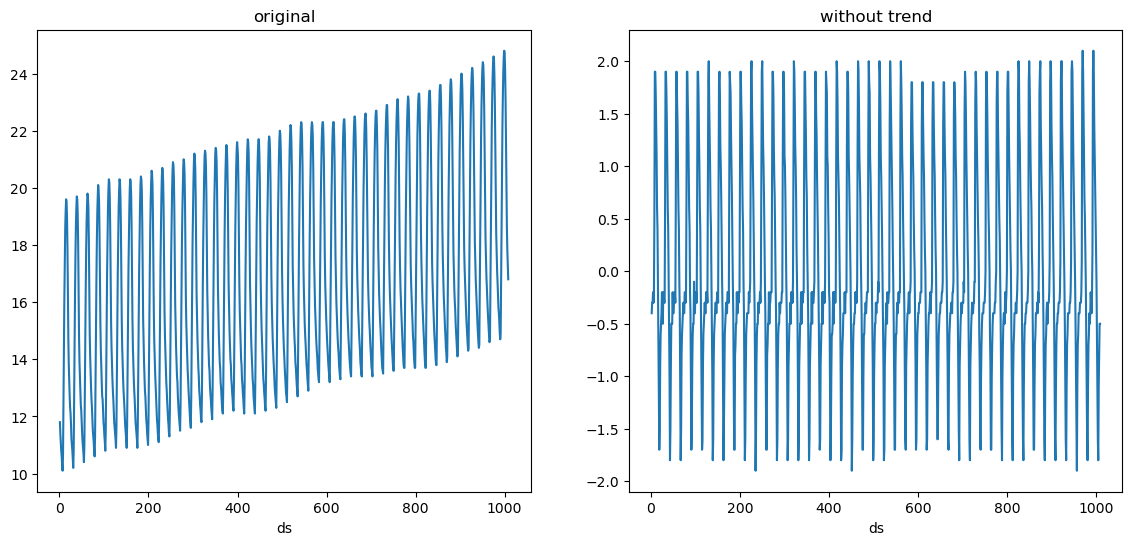

plot({'original': serie, 'without trend': without_trend}, 'target_transforms__diff1.png')
The trend is gone, we can now try taking the 24 difference (subtract the
value at the same hour in the previous day).
fcst = MLForecast(
models=[],
freq=1,
target_transforms=[Differences([1, 24])],
)
without_trend_and_seasonality = fcst.preprocess(serie)

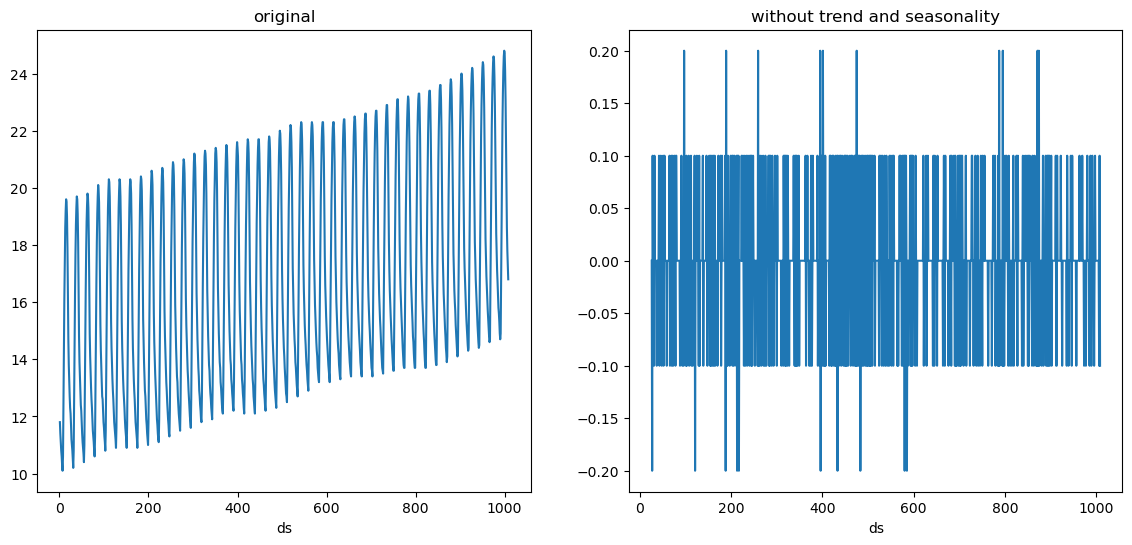

plot({'original': serie, 'without trend and seasonality': without_trend_and_seasonality}, 'target_transforms__diff2.png')
LocalStandardScaler
We see that our serie is random noise now. Suppose we also want to
standardize it, i.e. make it have a mean of 0 and variance of 1. We can
add the LocalStandardScaler transformation after these differences.
fcst = MLForecast(
models=[],
freq=1,
target_transforms=[Differences([1, 24]), LocalStandardScaler()],
)
standardized = fcst.preprocess(serie)
plot({'original': serie, 'standardized': standardized}, 'target_transforms__standardized.png')
standardized['y'].agg(['mean', 'var']).round(2)
mean -0.0
var 1.0
Name: y, dtype: float64

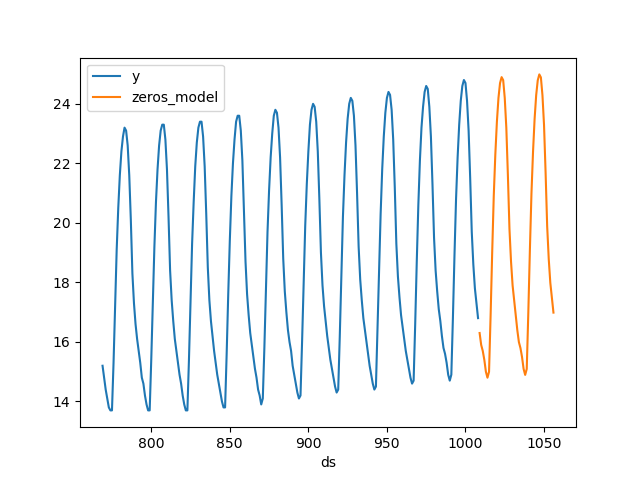

Now that we’ve captured the components of the serie (trend +
seasonality), we could try forecasting it with a model that always
predicts 0, which will basically project the trend and seasonality.
class Zeros(BaseEstimator):
def fit(self, X, y=None):
return self
def predict(self, X, y=None):
return np.zeros(X.shape[0])
fcst = MLForecast(
models={'zeros_model': Zeros()},
freq=1,
target_transforms=[Differences([1, 24]), LocalStandardScaler()],
)
preds = fcst.fit(serie).predict(48)
fig, ax = plt.subplots()
pd.concat([serie.tail(24 * 10), preds]).set_index('ds').plot(ax=ax)
plt.close()
Transformations applied to all series
There are some transformations that don’t require to learn any
parameters, such as applying logarithm for example. These can be easily
defined using the
GlobalSklearnTransformer
,
which takes a scikit-learn compatible transformer and applies it to all
series. Here’s an example on how to define a transformation that applies
logarithm to each value of the series + 1, which can help avoid
computing the log of 0.
import numpy as np
from sklearn.preprocessing import FunctionTransformer
from mlforecast.target_transforms import GlobalSklearnTransformer
sk_log1p = FunctionTransformer(func=np.log1p, inverse_func=np.expm1)
fcst = MLForecast(
models={'zeros_model': Zeros()},
freq=1,
target_transforms=[GlobalSklearnTransformer(sk_log1p)],
)
log1p_transformed = fcst.preprocess(serie)

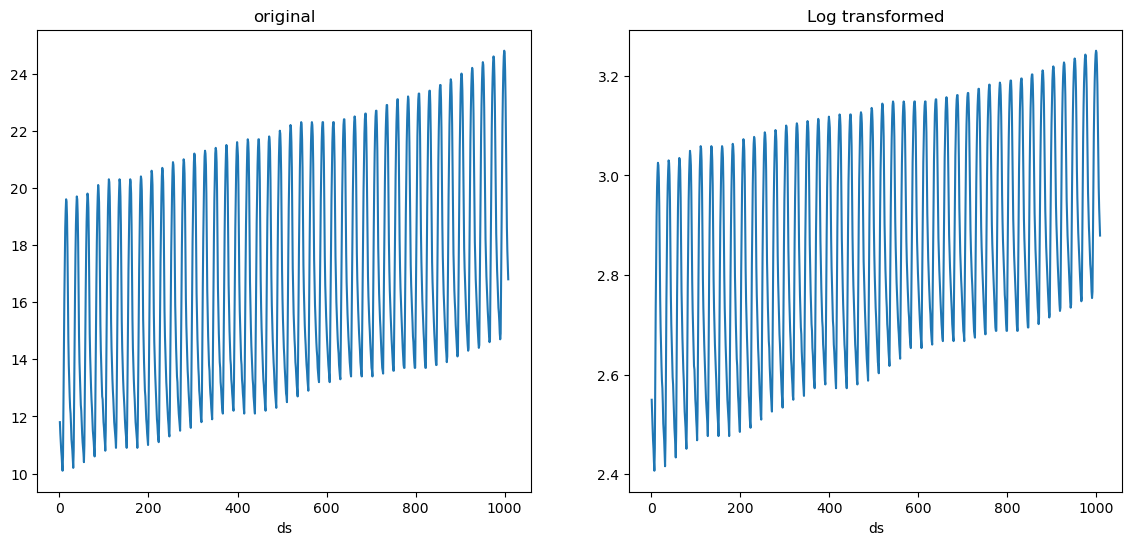

plot({'original': serie, 'Log transformed': log1p_transformed}, 'target_transforms__log.png')
We can also combine this with local transformations. For example we can
apply log first and then differencing.
fcst = MLForecast(
models=[],
freq=1,
target_transforms=[GlobalSklearnTransformer(sk_log1p), Differences([1, 24])],
)
log_diffs = fcst.preprocess(serie)

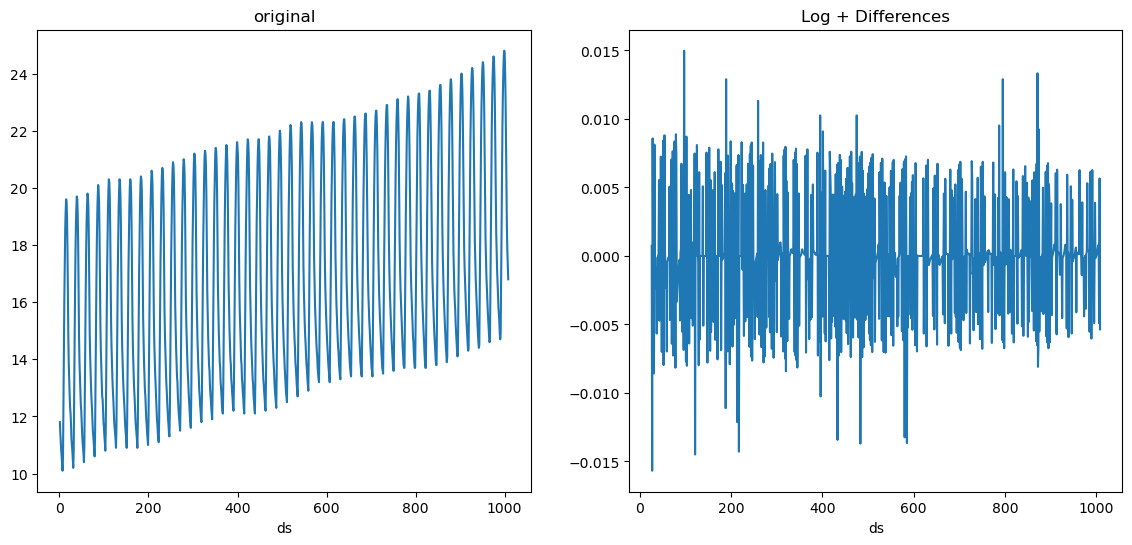

plot({'original': serie, 'Log + Differences': log_diffs}, 'target_transforms__log_diffs.png')
Implementing your own target transformations
In order to implement your own target transformation you have to define
a class that inherits from
mlforecast.target_transforms.BaseTargetTransform
(this takes care of setting the column names as the id_col
, time_col
and target_col
attributes) and implement the fit_transform
and
inverse_transform
methods. Here’s an example on how to define a
min-max scaler.
from mlforecast.target_transforms import BaseTargetTransform
class LocalMinMaxScaler(BaseTargetTransform):
"""Scales each serie to be in the [0, 1] interval."""
def fit_transform(self, df: pd.DataFrame) -> pd.DataFrame:
self.stats_ = df.groupby(self.id_col)[self.target_col].agg(['min', 'max'])
df = df.merge(self.stats_, on=self.id_col)
df[self.target_col] = (df[self.target_col] - df['min']) / (df['max'] - df['min'])
df = df.drop(columns=['min', 'max'])
return df
def inverse_transform(self, df: pd.DataFrame) -> pd.DataFrame:
df = df.merge(self.stats_, on=self.id_col)
for col in df.columns.drop([self.id_col, self.time_col, 'min', 'max']):
df[col] = df[col] * (df['max'] - df['min']) + df['min']
df = df.drop(columns=['min', 'max'])
return df
And now you can pass an instance of this class to the
target_transforms
argument.
fcst = MLForecast(
models=[],
freq=1,
target_transforms=[LocalMinMaxScaler()],
)
minmax_scaled = fcst.preprocess(serie)

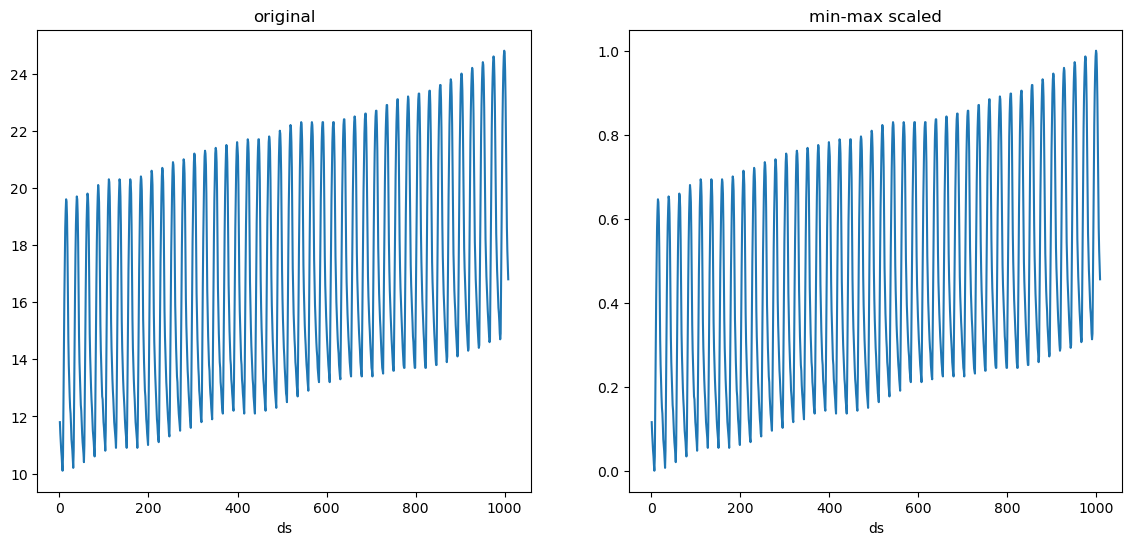

plot({'original': serie, 'min-max scaled': minmax_scaled}, 'target_transforms__minmax.png')
