In forecasting, we often find ourselves in need of forecasts for both lower- and higher (temporal) granularities, such as product demand forecasts but also product category or product department forecasts. These granularities can be formalized through the use of a hierarchy. In hierarchical forecasting, we create forecasts that are coherent with respect to a pre-specified hierarchy of the underlying time series. With TimeGPT, we can create forecasts for multiple time series. We can subsequently post-process these forecasts using hierarchical forecasting techniques of HierarchicalForecast.

​
1. Import packages

First, we import the required packages and initialize the Nixtla client.
import pandas as pd
import numpy as np

from nixtla import NixtlaClient

nixtla_client = NixtlaClient(
    # defaults to os.environ.get("NIXTLA_API_KEY")
    api_key = 'my_api_key_provided_by_nixtla'
)
👍 Use an Azure AI endpoint To use an Azure AI endpoint, set the base_url argument: nixtla_client = NixtlaClient(base_url="you azure ai endpoint", api_key="your api_key")

​
2. Load data

We use the Australian Tourism dataset, from Forecasting, Principles and Practices which contains data on Australian Tourism. We are interested in forecasts for Australia’s 7 States, 27 Zones and 76 Regions. This constitutes a hierarchy, where forecasts for the lower levels (e.g. the regions Sidney, Blue Mountains and Hunter) should be coherent with the forecasts of the higher levels (e.g. New South Wales). Map of Australia color coded by state. The states are from west to east, and then north to south - Western Australia, Northern Territory, South Australia, Queensland, New South Wales, Victoria. Australian Capital Territory is a small area within New South Wales. Tasmania is an island to the southeast. Australia hierarchy. Australia at the top with New South Wales and Queenslad below. Sidney, Blue Mountains, and Hunter in New South Wales. Brisbane and Cairns in Queensland. The dataset only contains the time series at the lowest level, so we need to create the time series for all hierarchies.
Y_df = pd.read_csv('https://raw.githubusercontent.com/Nixtla/transfer-learning-time-series/main/datasets/tourism.csv')
Y_df = Y_df.rename({'Trips': 'y', 'Quarter': 'ds'}, axis=1)
Y_df.insert(0, 'Country', 'Australia')
Y_df = Y_df[['Country', 'Region', 'State', 'Purpose', 'ds', 'y']]
Y_df['ds'] = Y_df['ds'].str.replace(r'(\d+) (Q\d)', r'\1-\2', regex=True)
Y_df['ds'] = pd.to_datetime(Y_df['ds'])

Y_df.head(10)

C:\Users\ospra\AppData\Local\Temp\ipykernel_16668\3753786659.py:6: UserWarning: Could not infer format, so each element will be parsed individually, falling back to `dateutil`. To ensure parsing is consistent and as-expected, please specify a format.
  Y_df['ds'] = pd.to_datetime(Y_df['ds'])
CountryRegionStatePurposedsy
0AustraliaAdelaideSouth AustraliaBusiness1998-01-01135.077690
1AustraliaAdelaideSouth AustraliaBusiness1998-04-01109.987316
2AustraliaAdelaideSouth AustraliaBusiness1998-07-01166.034687
3AustraliaAdelaideSouth AustraliaBusiness1998-10-01127.160464
4AustraliaAdelaideSouth AustraliaBusiness1999-01-01137.448533
5AustraliaAdelaideSouth AustraliaBusiness1999-04-01199.912586
6AustraliaAdelaideSouth AustraliaBusiness1999-07-01169.355090
7AustraliaAdelaideSouth AustraliaBusiness1999-10-01134.357937
8AustraliaAdelaideSouth AustraliaBusiness2000-01-01154.034398
9AustraliaAdelaideSouth AustraliaBusiness2000-04-01168.776364
The dataset can be grouped in the following hierarchical structure.
spec = [
    ['Country'],
    ['Country', 'State'],
    ['Country', 'Purpose'],
    ['Country', 'State', 'Region'],
    ['Country', 'State', 'Purpose'],
    ['Country', 'State', 'Region', 'Purpose']
]
Using the aggregate function from HierarchicalForecast we can get the full set of time series.
Note You can install hierarchicalforecast with pip:
pip install hierarchicalforecast

from hierarchicalforecast.utils import aggregate

Y_df, S_df, tags = aggregate(Y_df, spec)

Y_df.head(10)
unique_iddsy
0Australia1998-01-0123182.197269
1Australia1998-04-0120323.380067
2Australia1998-07-0119826.640511
3Australia1998-10-0120830.129891
4Australia1999-01-0122087.353380
5Australia1999-04-0121458.373285
6Australia1999-07-0119914.192508
7Australia1999-10-0120027.925640
8Australia2000-01-0122339.294779
9Australia2000-04-0119941.063482
We use the final two years (8 quarters) as test set.
Y_test_df = Y_df.groupby('unique_id').tail(8)
Y_train_df = Y_df.drop(Y_test_df.index)

​
3. Hierarchical forecasting with TimeGPT

First, we create base forecasts for all the time series with TimeGPT. Note that we set add_history=True, as we will need the in-sample fitted values of TimeGPT. We will predict 2 years (8 quarters), starting from 01-01-2016.
timegpt_fcst = nixtla_client.forecast(df=Y_train_df, h=8, freq='QS', add_history=True)

INFO:nixtla.nixtla_client:Validating inputs...
INFO:nixtla.nixtla_client:Preprocessing dataframes...
INFO:nixtla.nixtla_client:Querying model metadata...
INFO:nixtla.nixtla_client:Calling Forecast Endpoint...
INFO:nixtla.nixtla_client:Calling Historical Forecast Endpoint...
📘 Available models in Azure AI If you are using an Azure AI endpoint, please be sure to set model="azureai": nixtla_client.forecast(..., model="azureai") For the public API, we support two models: timegpt-1 and timegpt-1-long-horizon. By default, timegpt-1 is used. Please see this tutorial on how and when to use timegpt-1-long-horizon.
timegpt_fcst_insample = timegpt_fcst.query("ds < '2016-01-01'")
timegpt_fcst_outsample = timegpt_fcst.query("ds >= '2016-01-01'")

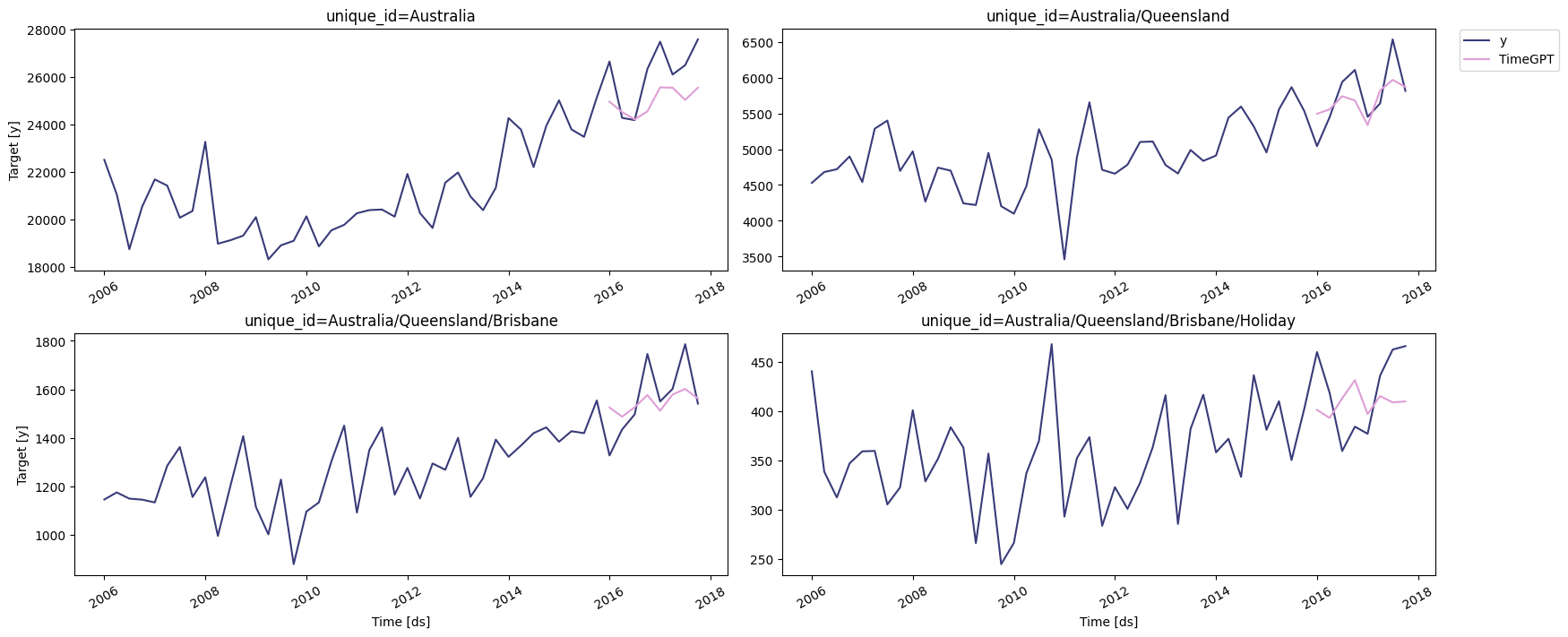

Let’s plot some of the forecasts, starting from the highest aggregation level (Australia), to the lowest level (Australia/Queensland/Brisbane/Holiday). We can see that there is room for improvement in the forecasts.
nixtla_client.plot(
    Y_df,
    timegpt_fcst_outsample,
    max_insample_length=4 * 12,
    unique_ids=['Australia', 'Australia/Queensland','Australia/Queensland/Brisbane', 'Australia/Queensland/Brisbane/Holiday']
)
We can make these forecasts coherent to the specified hierarchy by using a HierarchicalReconciliation method from NeuralForecast. We will be using the MinTrace method.
from hierarchicalforecast.methods import MinTrace
from hierarchicalforecast.core import HierarchicalReconciliation

reconcilers = [
    MinTrace(method='ols'),
    MinTrace(method='mint_shrink'),
]
hrec = HierarchicalReconciliation(reconcilers=reconcilers)

Y_df_with_insample_fcsts = Y_df.copy()
Y_df_with_insample_fcsts = timegpt_fcst_insample.merge(Y_df_with_insample_fcsts)

Y_rec_df = hrec.reconcile(Y_hat_df=timegpt_fcst_outsample, Y_df=Y_df_with_insample_fcsts, S=S_df, tags=tags)

Y_rec_df
unique_iddsTimeGPTTimeGPT/MinTrace_method-olsTimeGPT/MinTrace_method-mint_shrink
0Australia2016-01-0124967.1910025044.40863425394.406211
1Australia2016-04-0124528.8830024503.08981024327.212355
2Australia2016-07-0124221.7750024083.10781223813.826553
3Australia2016-10-0124559.4400024548.03879724174.894203
4Australia2017-01-0125570.3380025669.24828125560.277473
………………
3395Australia/Western Australia/Experience Perth/V…2016-10-01427.81146435.423617434.047102
3396Australia/Western Australia/Experience Perth/V…2017-01-01450.71786453.434056459.954598
3397Australia/Western Australia/Experience Perth/V…2017-04-01452.17923460.197847470.009789
3398Australia/Western Australia/Experience Perth/V…2017-07-01450.68683463.034888482.645932
3399Australia/Western Australia/Experience Perth/V…2017-10-01443.31050451.754435474.403379

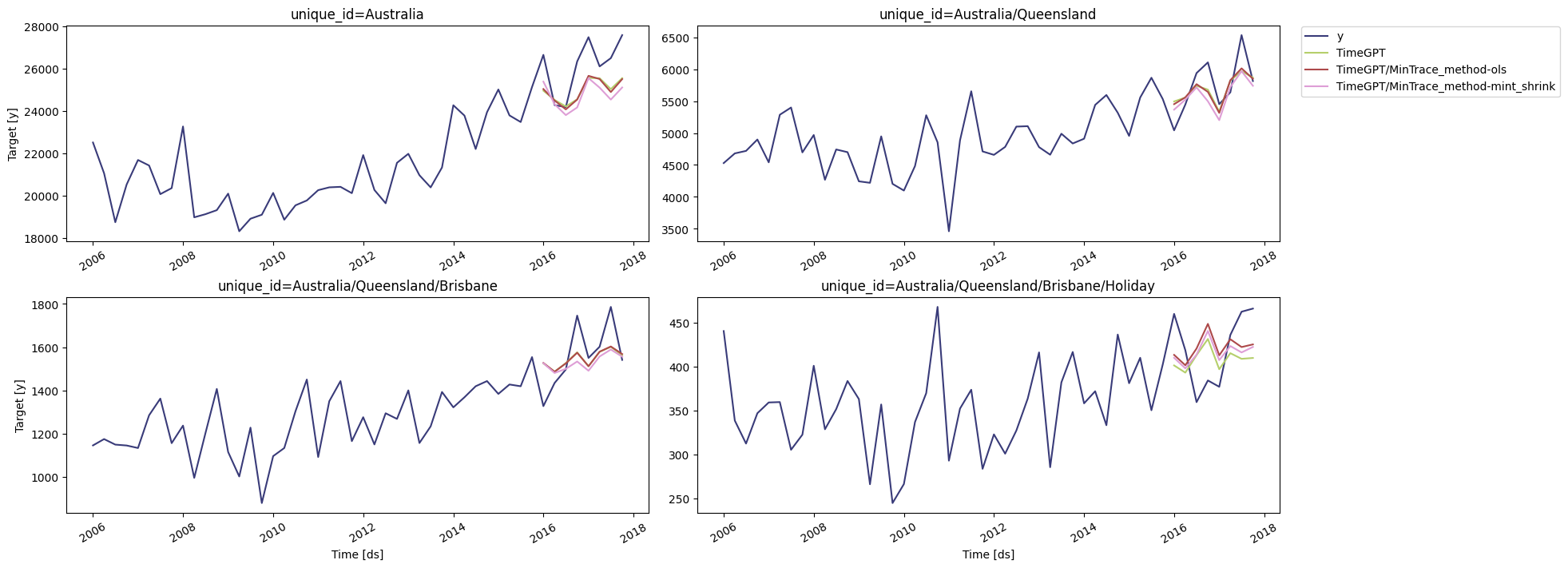

Again, we plot some of the forecasts. We can see a few, mostly minor differences in the forecasts.
nixtla_client.plot(
    Y_df,
    Y_rec_df,
    max_insample_length=4 * 12,
    unique_ids=['Australia', 'Australia/Queensland','Australia/Queensland/Brisbane', 'Australia/Queensland/Brisbane/Holiday']
)
Let’s numerically verify the forecasts to the situation where we don’t apply a post-processing step. We can use HierarchicalEvaluation for this.
from hierarchicalforecast.evaluation import evaluate
from utilsforecast.losses import rmse

eval_tags = {}
eval_tags['Total'] = tags['Country']
eval_tags['Purpose'] = tags['Country/Purpose']
eval_tags['State'] = tags['Country/State']
eval_tags['Regions'] = tags['Country/State/Region']
eval_tags['Bottom'] = tags['Country/State/Region/Purpose']

evaluation = evaluate(
        df=Y_rec_df.merge(Y_test_df, on=['unique_id', 'ds']),
        tags=eval_tags,
        train_df=Y_train_df,
        metrics=[rmse],
)
numeric_cols = evaluation.select_dtypes(np.number).columns
evaluation[numeric_cols] = evaluation[numeric_cols].map('{:.2f}'.format)

evaluation
levelmetricTimeGPTTimeGPT/MinTrace_method-olsTimeGPT/MinTrace_method-mint_shrink
0Totalrmse1433.071436.071627.43
1Purposermse482.09475.64507.50
2Statermse275.85278.39294.28
3Regionsrmse49.4047.9147.99
4Bottomrmse19.3219.1118.86
5Overallrmse38.6638.2139.16
We made a small improvement in overall RMSE by reconciling the forecasts with MinTrace(ols), and made them slightly worse using MinTrace(mint_shrink), indicating that the base forecasts were relatively strong already. However, we now have coherent forecasts too - so not only did we make a (small) accuracy improvement, we also got coherency to the hierarchy as a result of our reconciliation step. References
