Temporal Hierarchical Forecasting with TimeGPT

In this notebook, we demonstrate how to use TimeGPT for temporal hierarchical forecasting. We will use a dataset that has an hourly frequency, and we create forecasts with TimeGPT for both the hourly and the 2-hourly frequency level. The latter constitutes the timeseries when it is aggregated across 2-hour windows. Subsequently, we can use temporal reconciliation techniques to improve the forecasting performance of TimeGPT.

​

1. Load and Process Data

import numpy as np
import pandas as pd

from utilsforecast.evaluation import evaluate
from utilsforecast.plotting import plot_series
from utilsforecast.losses import mae, rmse
from nixtla import NixtlaClient

nixtla_client = NixtlaClient(
    # api_key = 'my_api_key_provided_by_nixtla'
)

df = pd.read_csv('https://raw.githubusercontent.com/Nixtla/transfer-learning-time-series/main/datasets/electricity-short-with-ex-vars.csv')
df['ds'] = pd.to_datetime(df['ds'])
df_sub = df.query('unique_id == "DE"')

df_train = df_sub.query('ds < "2017-12-29"')
df_test = df_sub.query('ds >= "2017-12-29"')
df_train.shape, df_test.shape

((1632, 12), (48, 12))

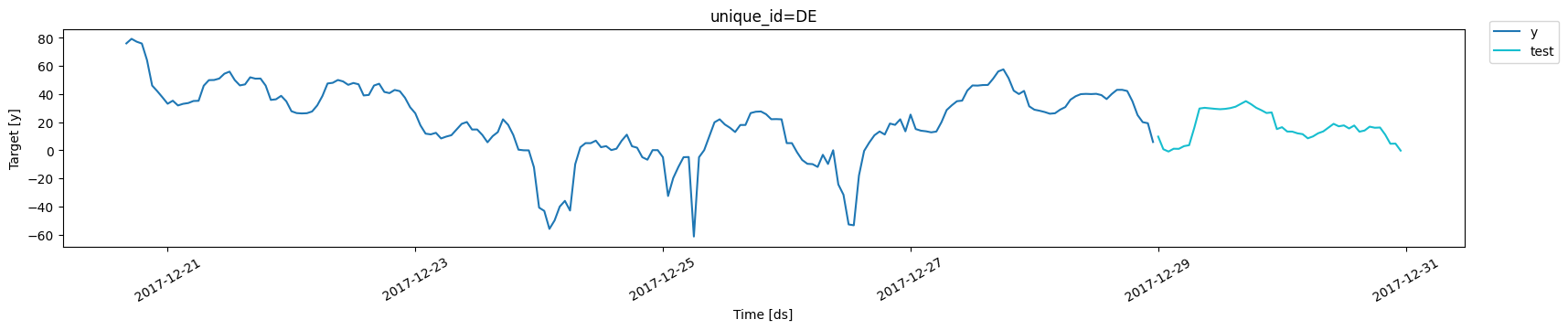

plot_series(df_train[['unique_id','ds','y']][-200:], forecasts_df= df_test[['unique_id','ds','y']].rename(columns={'y': 'test'}))

​

2. Temporal aggregation

We are interested in generating forecasts for the hourly and 2-hourly windows. We can generate these forecasts using TimeGPT. After generating these forecasts, we make use of hierarchical forecasting techniques to improve the accuracy of each forecast.

We first define the temporal aggregation spec. The spec is a dictionary in which the keys are the name of the aggregation and the value is the amount of bottom-level timesteps that should be aggregated in that aggregation.

In this example, we choose a temporal aggregation of a 2-hour period and a 1-hour period (the bottom level).

spec_temporal = { "2-hour-period": 2, "1-hour-period": 1}

We next compute the temporally aggregated train- and test sets using the aggregate_temporal function from hierarchicalforecast. Note that we have different aggregation matrices S for the train- and test set, as the test set contains temporal hierarchies that are not included in the train set.

from hierarchicalforecast.utils import aggregate_temporal

Y_train, S_train, tags_train = aggregate_temporal(df=df_train[['unique_id','ds','y']], spec=spec_temporal)
Y_test, S_test, tags_test = aggregate_temporal(df=df_test[['unique_id','ds','y']],  spec=spec_temporal)

Y_train contains our training data, for both 1-hour and 2-hour periods. For example, if we look at the first two timestamps of the training data, we have a 2-hour period ending at 2017-10-22 01:00, and two 1-hour periods, the first ending at 2017-10-22 00:00, and the second at 2017-10-22 01:00, the latter corresponding to when the first 2-hour period ends.

Also, the ground truth value y of the first 2-hour period is 38.13, which is equal to the sum of the first two 1-hour periods (19.10 + 19.03). This showcases how the higher frequency 1-hour-period has been aggregated into the 2-hour-period frequency.

Y_train.query("ds <= '2017-10-22 01:00:00'")

The aggregation matrices S_train and S_test detail how the lowest temporal granularity (hour) can be aggregated into the 2-hour periods. For example, the first 2-hour period, named 2-hour-period-1, can be constructed by summing the first two hour-periods, 1-hour-period-1 and 1-hour-period-2 - which we also verified above in our inspection of Y_train.

S_train.iloc[:5, :5]

​

3b. Computing base forecasts

Now, we need to compute base forecasts for each temporal aggregation. The following cell computes the base forecasts for each temporal aggregation in Y_train using TimeGPT.

Note that both frequency and horizon are different for each temporal aggregation. In this example, the lowest level has a hourly frequency, and a horizon of 48. The 2-hourly-period aggregation thus has a 2-hourly frequency with a horizon of 24.

Y_hats = []
id_cols = ["unique_id", "temporal_id", "ds", "y"]
# We will train a model for each temporal level
for level, temporal_ids_train in tags_train.items():
    # Filter the data for the level
    Y_level_train = Y_train.query("temporal_id in @temporal_ids_train")
    temporal_ids_test = tags_test[level]
    Y_level_test = Y_test.query("temporal_id in @temporal_ids_test")
    # For each temporal level we have a different frequency and forecast horizon
    freq_level = pd.infer_freq(Y_level_train["ds"].unique())
    horizon_level = Y_level_test["ds"].nunique()
    # Train a model and create forecasts
    Y_hat_level = nixtla_client.forecast(df=Y_level_train[["ds", "unique_id", "y"]], h=horizon_level)
    # Add the test set to the forecast
    Y_hat_level = Y_hat_level.merge(Y_level_test, on=["ds", "unique_id"], how="left")
    # Put cols in the right order (for readability)
    Y_hat_cols = id_cols + [col for col in Y_hat_level.columns if col not in id_cols]
    Y_hat_level = Y_hat_level[Y_hat_cols]
    # Append the forecast to the list
    Y_hats.append(Y_hat_level)

Y_hat = pd.concat(Y_hats, ignore_index=True)

Observe that Y_hat contains all the forecasts but they are not coherent with each other. For example, consider the forecasts for the first time period of both frequencies.

Y_hat.query("temporal_id in ['2-hour-period-1', '1-hour-period-1', '1-hour-period-2']")

The ground truth value y for the first 2-hour period is 10.45, and the sum of the ground truth values for the first two 1-hour periods is (9.73 + 0.72) = 10.45. Hence, these values are coherent with each other.

However, the forecast for the first 2-hour period is 16.95, but the sum of the forecasts for the first two 1-hour periods is -3.69. Hence, these forecasts are clearly not coherent with each other.

We will use reconciliation techniques to make these forecasts better coherent with each other and improve their accuracy.

​

3c. Reconcile forecasts

We can use the HierarchicalReconciliation class to reconcile the forecasts. In this example we use MinTrace. Note that we have to set temporal=True in the reconcile function.

from hierarchicalforecast.methods import MinTrace
from hierarchicalforecast.core import HierarchicalReconciliation

reconcilers = [
    MinTrace(method="wls_struct"),
]
hrec = HierarchicalReconciliation(reconcilers=reconcilers)
Y_rec = hrec.reconcile(Y_hat_df=Y_hat, S=S_test, tags=tags_test, temporal=True)

​

4. Evaluation

The HierarchicalForecast package includes the evaluate function to evaluate the different hierarchies.

We evaluate the temporally aggregated forecasts across all temporal aggregations.

import hierarchicalforecast.evaluation as hfe
from utilsforecast.losses import mae

evaluation = hfe.evaluate(df = Y_rec.drop(columns = 'unique_id'),
                      tags = tags_test,
                      metrics = [mae],
                      id_col='temporal_id')

numeric_cols = evaluation.select_dtypes(include="number").columns
evaluation[numeric_cols] = evaluation[numeric_cols].map('{:.3}'.format).astype(np.float64)

evaluation

As we can see, we improved performance of TimeGPT’s predictions both for the 2-hour period and for the 1-hour period, as both levels see a significant reduction in MAE and RMSE.

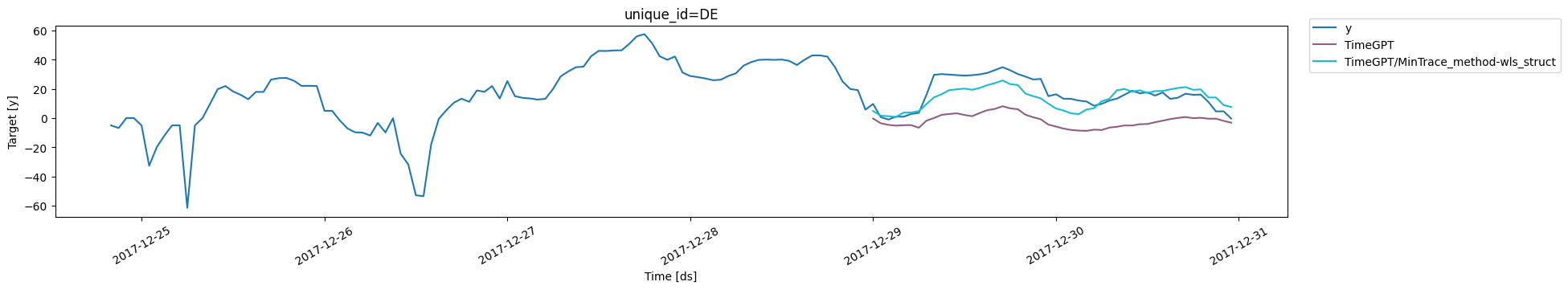

Visually, we can also verify the forecast is better after using reconciliation techniques. For the 1-hour-period forecasts:

plot_series(Y_train.query("temporal_id in @tags_train['1-hour-period']")[["y", "ds", "unique_id"]].iloc[-100:], forecasts_df=Y_rec.query("temporal_id in @tags_test['1-hour-period']").drop(columns=["temporal_id"]))

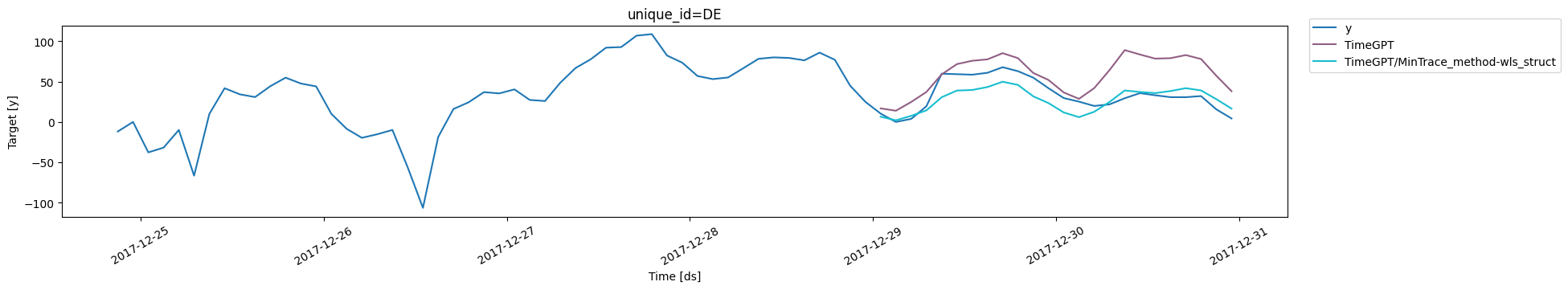

and for the 2-hour period forecasts:

plot_series(Y_train.query("temporal_id in @tags_train['2-hour-period']")[["y", "ds", "unique_id"]].iloc[-50:], forecasts_df=Y_rec.query("temporal_id in @tags_test['2-hour-period']").drop(columns=["temporal_id"]))

Also, we can now verify that the forecasts are better coherent with each other. For the first 2-hour period, our forecast after reconciliation is 6.63, and the sum of the forecasts for the first two 1-hour periods is 1.7 + 4.92 = 6.63. Hence, we now have more accurate and coherent forecasts across frequencies.

Y_rec.query("temporal_id in ['2-hour-period-1', '1-hour-period-1', '1-hour-period-2']")

​

Conclusion

In this notebook we have shown: - How to create forecasts for multiple frequencies for the same dataset with TimeGPT - How to improve the accuracy of these forecasts using temporal reconciliation techniques

Note that even though we created forecasts for two different frequencie, there is no ‘need’ to use the forecast of the 2-hour-period. One can use this technique also simply to improve the forecast of the 1-hour-period.
