VAR,
CopulaGenerator), so you can test multivariate imputation and check
that a model still recovers the cross-series structure through the gaps.
Independent gaps, shared structure Each channel receives its own missing pattern — the series don’t drop out in lockstep — while the correlation between them is left intact, because missingness is applied after the correlated values are generated. The final section confirms the cross-series correlation survives.
import matplotlib.pyplot as plt
import numpy as np
import polars as pl
from synforecast.generators import CopulaGenerator, VARGenerator
VAR generator with random missing data
Generate 3 correlated series from a VAR(1) model with 15% random missing data.var_params = {
"min_length": 200,
"max_length": 200,
"freq": "D",
"lag_order": 1,
"missing_data": True,
"missing_pattern": "random",
"missing_rate": 0.15,
"seed": 42,
}
var_gen = VARGenerator(engine="polars", **var_params)
df_var = var_gen.generate(n_series=3)
print(
f"Generated {df_var['unique_id'].n_unique()} correlated series with VAR(1) model"
)
print(f"Total observations: {len(df_var)}")
df_var.head(30)
Generated 3 correlated series with VAR(1) model
Total observations: 600
| unique_id | ds | y |
|---|---|---|
| cat | datetime[ns] | f64 |
| ”0” | 2000-01-01 00:00:00 | 2.057667 |
| ”0” | 2000-01-02 00:00:00 | 0.295293 |
| ”0” | 2000-01-03 00:00:00 | 0.893053 |
| ”0” | 2000-01-04 00:00:00 | 0.235888 |
| ”0” | 2000-01-05 00:00:00 | NaN |
| … | … | … |
| “0” | 2000-01-26 00:00:00 | 0.474074 |
| ”0” | 2000-01-27 00:00:00 | NaN |
| ”0” | 2000-01-28 00:00:00 | 0.068059 |
| ”0” | 2000-01-29 00:00:00 | NaN |
| ”0” | 2000-01-30 00:00:00 | -0.438549 |
print("Missing data statistics by series:")
for series_id in df_var["unique_id"].unique().sort():
series_df = df_var.filter(pl.col("unique_id") == series_id)
values = series_df["y"].to_numpy()
nan_count = np.sum(np.isnan(values))
nan_rate = nan_count / len(values)
print(f" {series_id}: {nan_count} missing ({nan_rate:.1%})")
Missing data statistics by series:
0: 30 missing (15.0%)
1: 30 missing (15.0%)
2: 30 missing (15.0%)

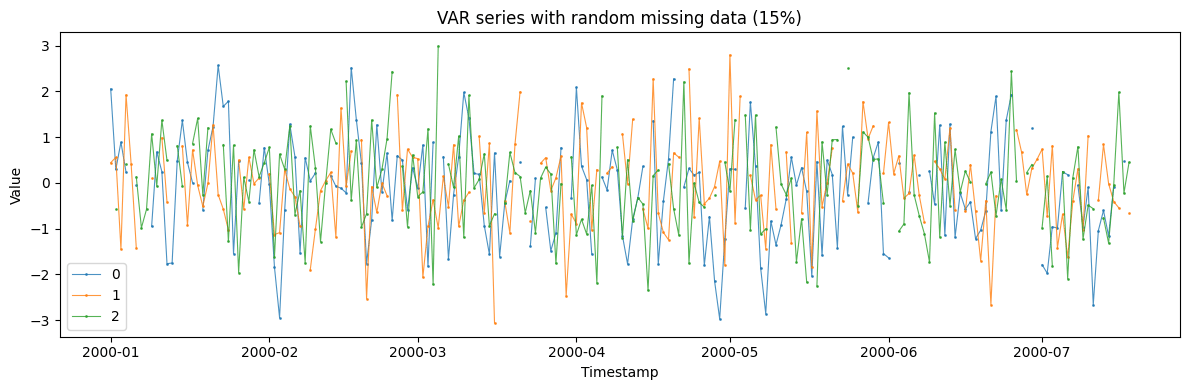

fig, ax = plt.subplots(figsize=(12, 4))
for uid in df_var["unique_id"].unique().to_list():
series = df_var.filter(pl.col("unique_id") == uid)
ax.plot(series["ds"].to_list(), series["y"].to_list(), label=uid, alpha=0.8, marker=".", markersize=2, linewidth=0.8)
ax.set_title("VAR series with random missing data (15%)")
ax.set_xlabel("Timestamp")
ax.set_ylabel("Value")
ax.legend()
plt.tight_layout()
plt.show()
Copula generator with block missing data
Generate correlated series using a Gaussian copula with week-long missing blocks, simulating synchronized outages.correlation_matrix = np.array([[1.0, 0.7, 0.3], [0.7, 1.0, 0.5], [0.3, 0.5, 1.0]])
copula_params = {
"min_length": 200,
"max_length": 200,
"freq": "D",
"copula_type": "gaussian",
"correlation_matrix": correlation_matrix,
"missing_data": True,
"missing_pattern": "block",
"missing_rate": 0.2,
"missing_block_size": 7,
"seed": 123,
}
copula_gen = CopulaGenerator(engine="polars", **copula_params)
df_copula = copula_gen.generate(n_series=3)
print(
f"Generated {df_copula['unique_id'].n_unique()} correlated series with Gaussian copula"
)
print(f"Missing blocks of size: {copula_params['missing_block_size']} days")
df_copula.head(40)
Generated 3 correlated series with Gaussian copula
Missing blocks of size: 7 days
| unique_id | ds | y |
|---|---|---|
| cat | datetime[ns] | f64 |
| ”0” | 2000-01-01 00:00:00 | 1.05608 |
| ”0” | 2000-01-02 00:00:00 | 0.436385 |
| ”0” | 2000-01-03 00:00:00 | 0.680307 |
| ”0” | 2000-01-04 00:00:00 | -0.158773 |
| ”0” | 2000-01-05 00:00:00 | -0.99138 |
| … | … | … |
| “0” | 2000-02-05 00:00:00 | 0.293606 |
| ”0” | 2000-02-06 00:00:00 | 0.504607 |
| ”0” | 2000-02-07 00:00:00 | NaN |
| ”0” | 2000-02-08 00:00:00 | NaN |
| ”0” | 2000-02-09 00:00:00 | NaN |
print("Block missing statistics by series:")
for series_id in df_copula["unique_id"].unique().sort():
series_df = df_copula.filter(pl.col("unique_id") == series_id)
values = series_df["y"].to_numpy()
nan_count = np.sum(np.isnan(values))
nan_rate = nan_count / len(values)
max_consecutive = 0
current_consecutive = 0
for val in values:
if np.isnan(val):
current_consecutive += 1
max_consecutive = max(max_consecutive, current_consecutive)
else:
current_consecutive = 0
print(
f" {series_id}: {nan_count} missing ({nan_rate:.1%}), "
f"max block: {max_consecutive} days"
)
Block missing statistics by series:
0: 33 missing (16.5%), max block: 12 days
1: 35 missing (17.5%), max block: 7 days
2: 30 missing (15.0%), max block: 9 days

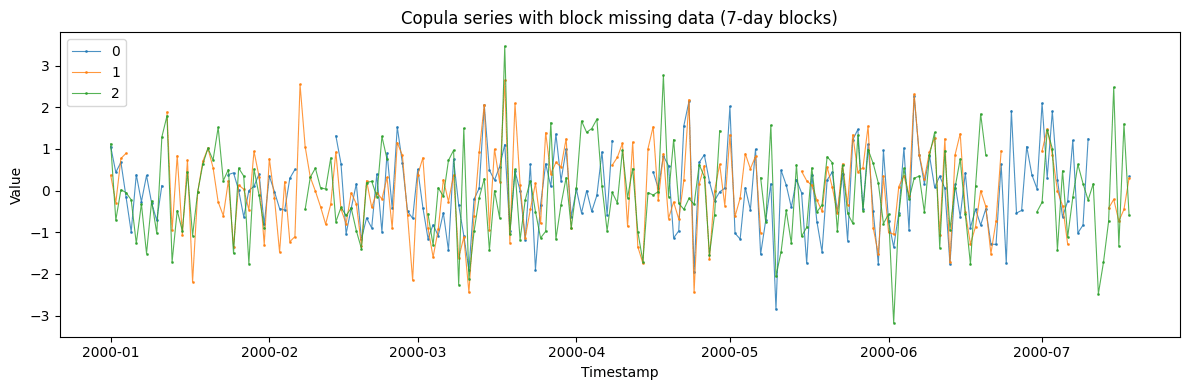

fig, ax = plt.subplots(figsize=(12, 4))
for uid in df_copula["unique_id"].unique().to_list():
series = df_copula.filter(pl.col("unique_id") == uid)
ax.plot(series["ds"].to_list(), series["y"].to_list(), label=uid, alpha=0.8, marker=".", markersize=2, linewidth=0.8)
ax.set_title("Copula series with block missing data (7-day blocks)")
ax.set_xlabel("Timestamp")
ax.set_ylabel("Value")
ax.legend()
plt.tight_layout()
plt.show()
VAR with seasonal missing data (weekend gaps)
Simulate a year of VAR(2) data with weekly seasonal missing patterns, representing weekend reporting gaps.var_seasonal_params = {
"min_length": 365,
"max_length": 365,
"freq": "D",
"lag_order": 2,
"missing_data": True,
"missing_pattern": "seasonal",
"missing_rate": 0.12,
"missing_seasonal_period": 7,
"seed": 456,
}
var_seasonal_gen = VARGenerator(engine="polars", **var_seasonal_params)
df_var_seasonal = var_seasonal_gen.generate(n_series=2)
print(
f"Generated {df_var_seasonal['unique_id'].n_unique()} correlated series (1 year)"
)
print(
f"Seasonal period: {var_seasonal_params['missing_seasonal_period']} days (weekly)"
)
print("\nSeasonal missing statistics:")
for series_id in df_var_seasonal["unique_id"].unique().sort():
series_df = df_var_seasonal.filter(pl.col("unique_id") == series_id)
values = series_df["y"].to_numpy()
nan_count = np.sum(np.isnan(values))
nan_rate = nan_count / len(values)
print(f" {series_id}: {nan_count} missing ({nan_rate:.1%})")
df_var_seasonal.head(30)
Generated 2 correlated series (1 year)
Seasonal period: 7 days (weekly)
Seasonal missing statistics:
0: 44 missing (12.1%)
1: 46 missing (12.6%)
| unique_id | ds | y |
|---|---|---|
| cat | datetime[ns] | f64 |
| ”0” | 2000-01-01 00:00:00 | 0.891458 |
| ”0” | 2000-01-02 00:00:00 | -1.258571 |
| ”0” | 2000-01-03 00:00:00 | NaN |
| ”0” | 2000-01-04 00:00:00 | -0.421688 |
| ”0” | 2000-01-05 00:00:00 | -0.204434 |
| … | … | … |
| “0” | 2000-01-26 00:00:00 | 0.997592 |
| ”0” | 2000-01-27 00:00:00 | 2.656017 |
| ”0” | 2000-01-28 00:00:00 | 0.936677 |
| ”0” | 2000-01-29 00:00:00 | 1.093172 |
| ”0” | 2000-01-30 00:00:00 | -0.687454 |

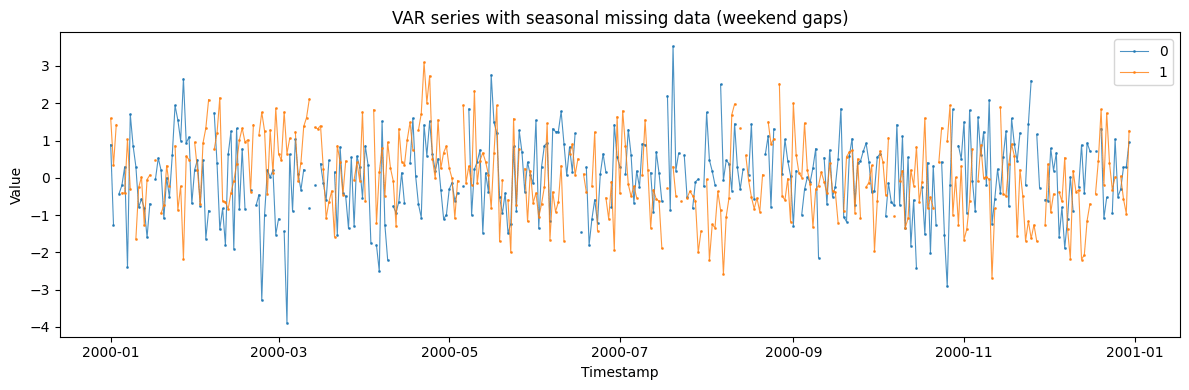

fig, ax = plt.subplots(figsize=(12, 4))
for uid in df_var_seasonal["unique_id"].unique().to_list():
series = df_var_seasonal.filter(pl.col("unique_id") == uid)
ax.plot(series["ds"].to_list(), series["y"].to_list(), label=uid, alpha=0.8, marker=".", markersize=2, linewidth=0.8)
ax.set_title("VAR series with seasonal missing data (weekend gaps)")
ax.set_xlabel("Timestamp")
ax.set_ylabel("Value")
ax.legend()
plt.tight_layout()
plt.show()
Correlation across the gaps
Estimate the cross-series correlation with and without missing data (dropping only the timestamps missing in either series). The estimate stays close, confirming the gaps are missing-at-random with respect to the dependence structure rather than distorting it.params_complete = {
"min_length": 500,
"max_length": 500,
"freq": "D",
"lag_order": 1,
"missing_data": False,
"seed": 789,
}
params_missing = {
"min_length": 500,
"max_length": 500,
"freq": "D",
"lag_order": 1,
"missing_data": True,
"missing_pattern": "random",
"missing_rate": 0.25,
"seed": 789,
}
gen_complete = VARGenerator(engine="polars", **params_complete)
df_complete = gen_complete.generate(n_series=2)
gen_missing = VARGenerator(engine="polars", **params_missing)
df_missing = gen_missing.generate(n_series=2)
# Calculate correlations
series_0_complete = df_complete.filter(pl.col("unique_id") == "0")[
"y"
].to_numpy()
series_1_complete = df_complete.filter(pl.col("unique_id") == "1")[
"y"
].to_numpy()
corr_complete = np.corrcoef(series_0_complete, series_1_complete)[0, 1]
series_0_missing = df_missing.filter(pl.col("unique_id") == "0")[
"y"
].to_numpy()
series_1_missing = df_missing.filter(pl.col("unique_id") == "1")[
"y"
].to_numpy()
mask = ~(np.isnan(series_0_missing) | np.isnan(series_1_missing))
corr_missing = np.corrcoef(series_0_missing[mask], series_1_missing[mask])[0, 1]
print(f"Correlation (complete data): {corr_complete:.3f}")
print(f"Correlation (25% missing): {corr_missing:.3f}")
print(f"Correlation preserved: {abs(corr_complete - corr_missing) < 0.1}")
Correlation (complete data): 0.069
Correlation (25% missing): 0.041
Correlation preserved: True

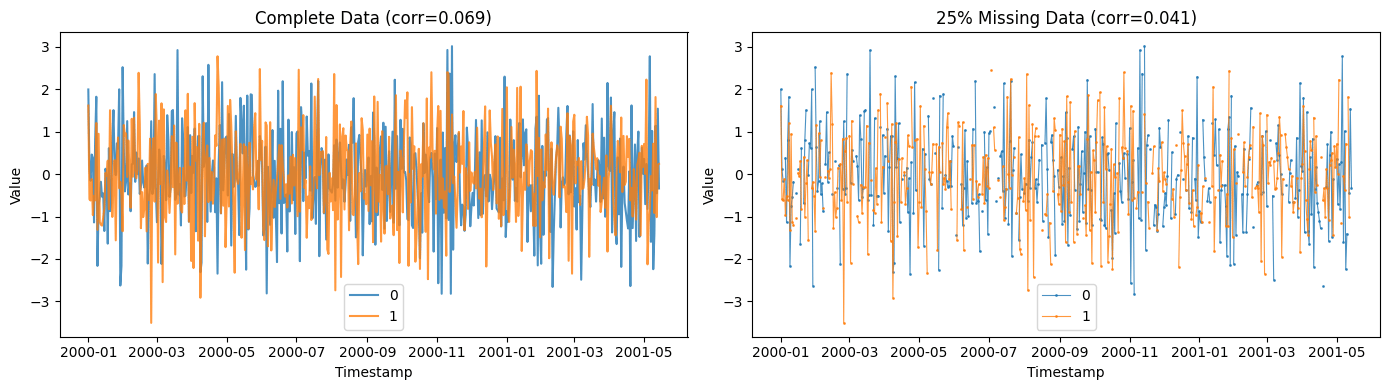

fig, axes = plt.subplots(1, 2, figsize=(14, 4))
for uid in df_complete["unique_id"].unique().to_list():
series = df_complete.filter(pl.col("unique_id") == uid)
axes[0].plot(series["ds"].to_list(), series["y"].to_list(), label=uid, alpha=0.8)
axes[0].set_title(f"Complete Data (corr={corr_complete:.3f})")
axes[0].set_xlabel("Timestamp")
axes[0].set_ylabel("Value")
axes[0].legend()
for uid in df_missing["unique_id"].unique().to_list():
series = df_missing.filter(pl.col("unique_id") == uid)
axes[1].plot(series["ds"].to_list(), series["y"].to_list(), label=uid, alpha=0.8, marker=".", markersize=2, linewidth=0.8)
axes[1].set_title(f"25% Missing Data (corr={corr_missing:.3f})")
axes[1].set_xlabel("Timestamp")
axes[1].set_ylabel("Value")
axes[1].legend()
plt.tight_layout()
plt.show()
